Hardware

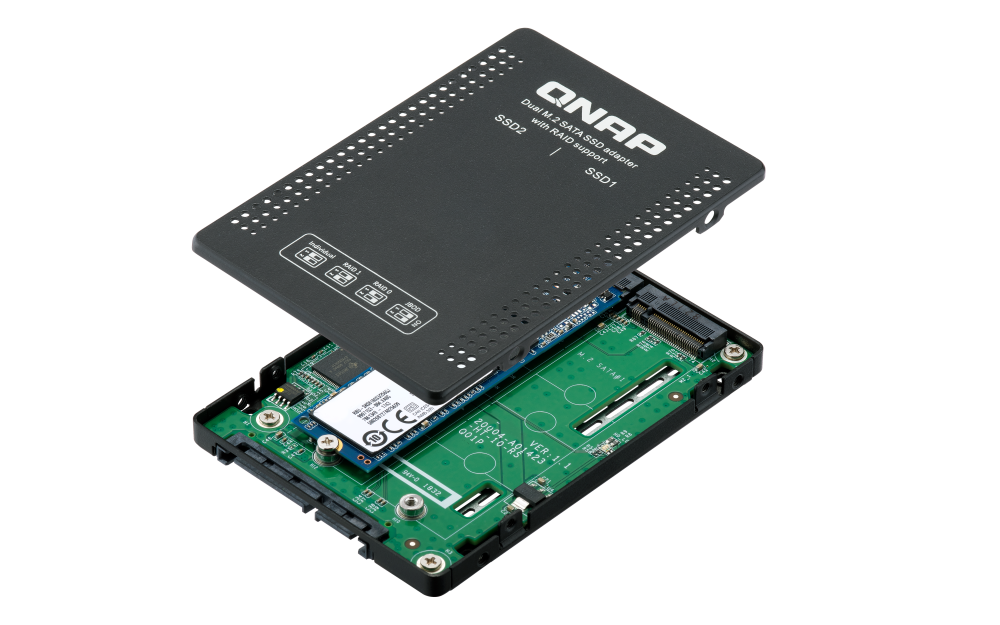

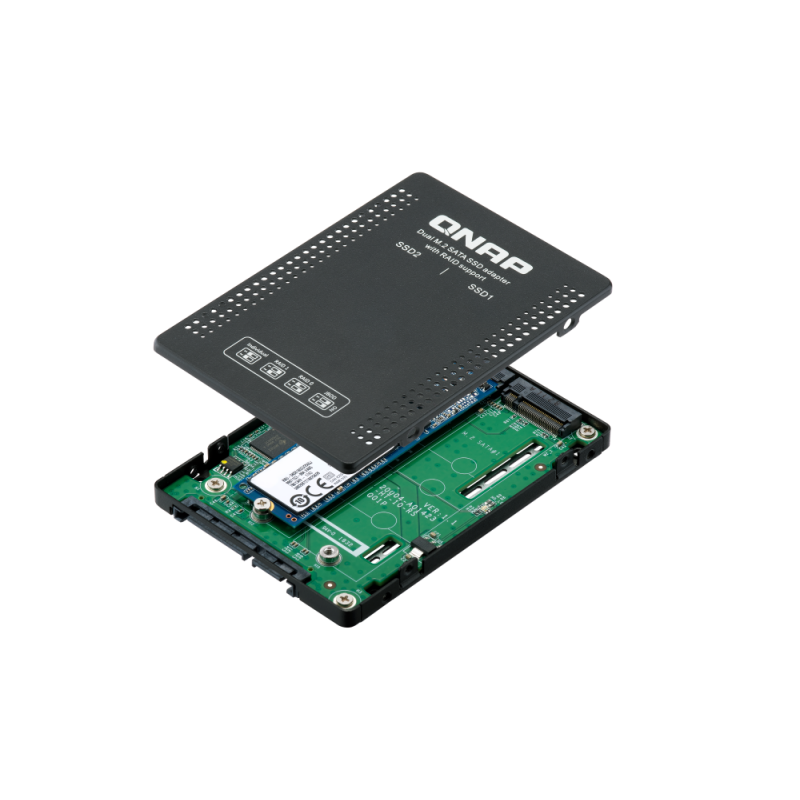

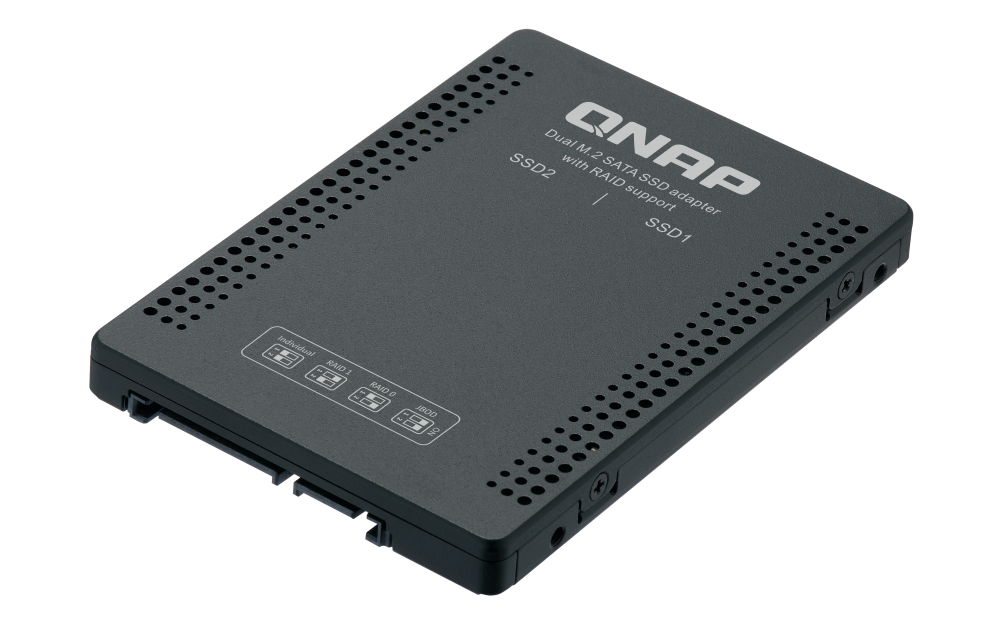

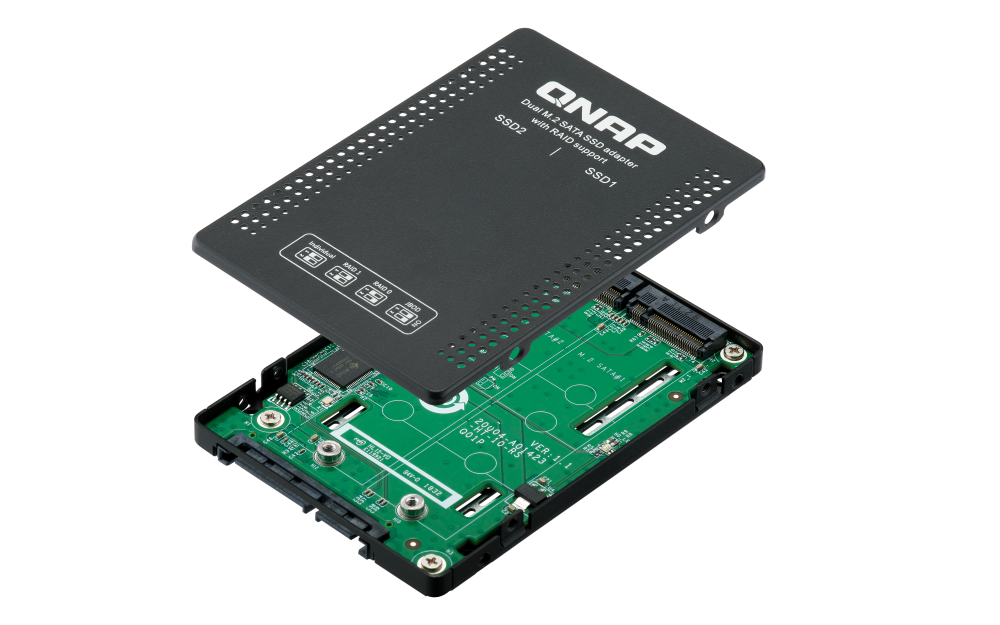

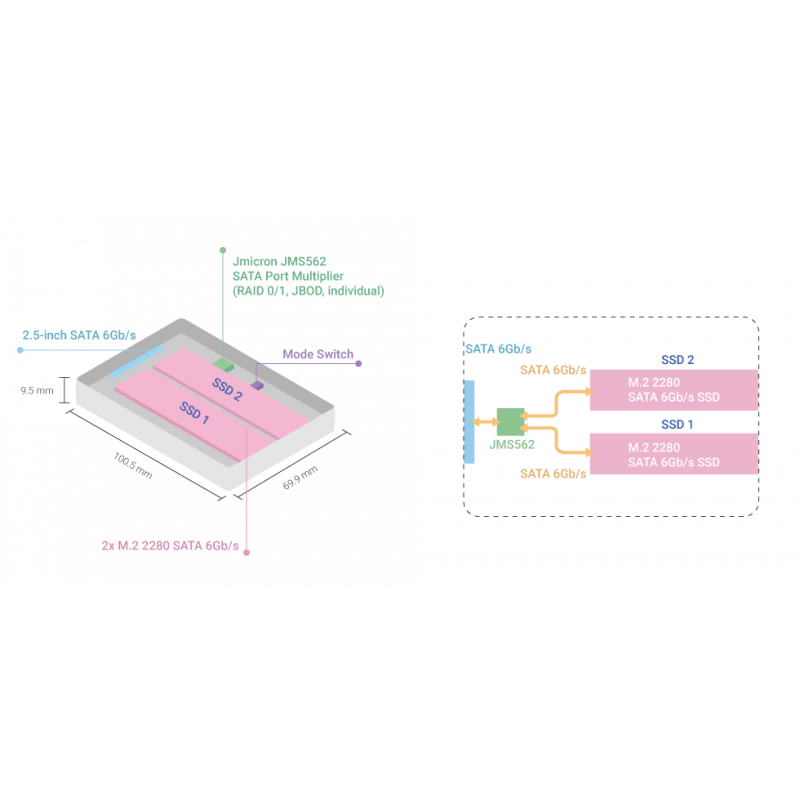

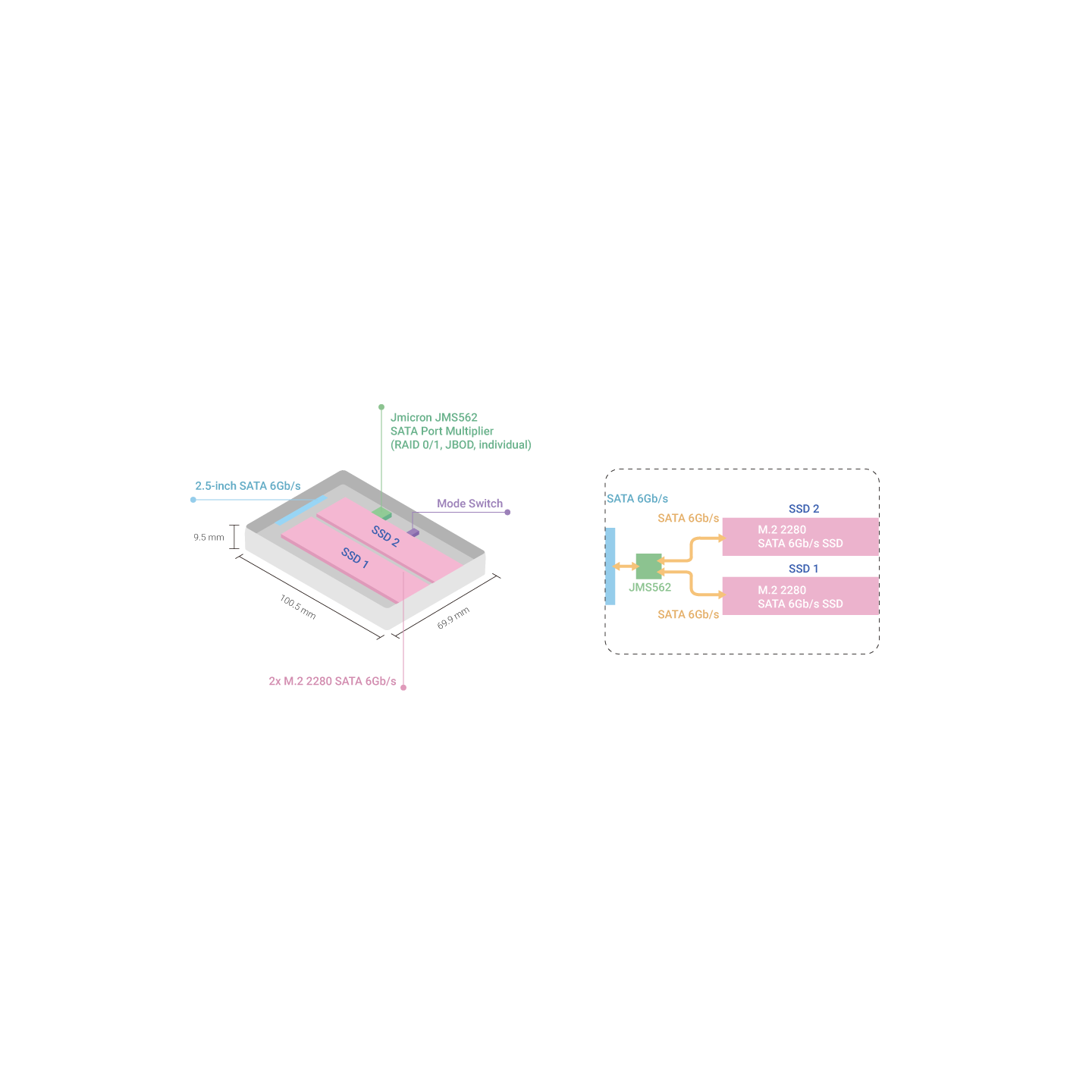

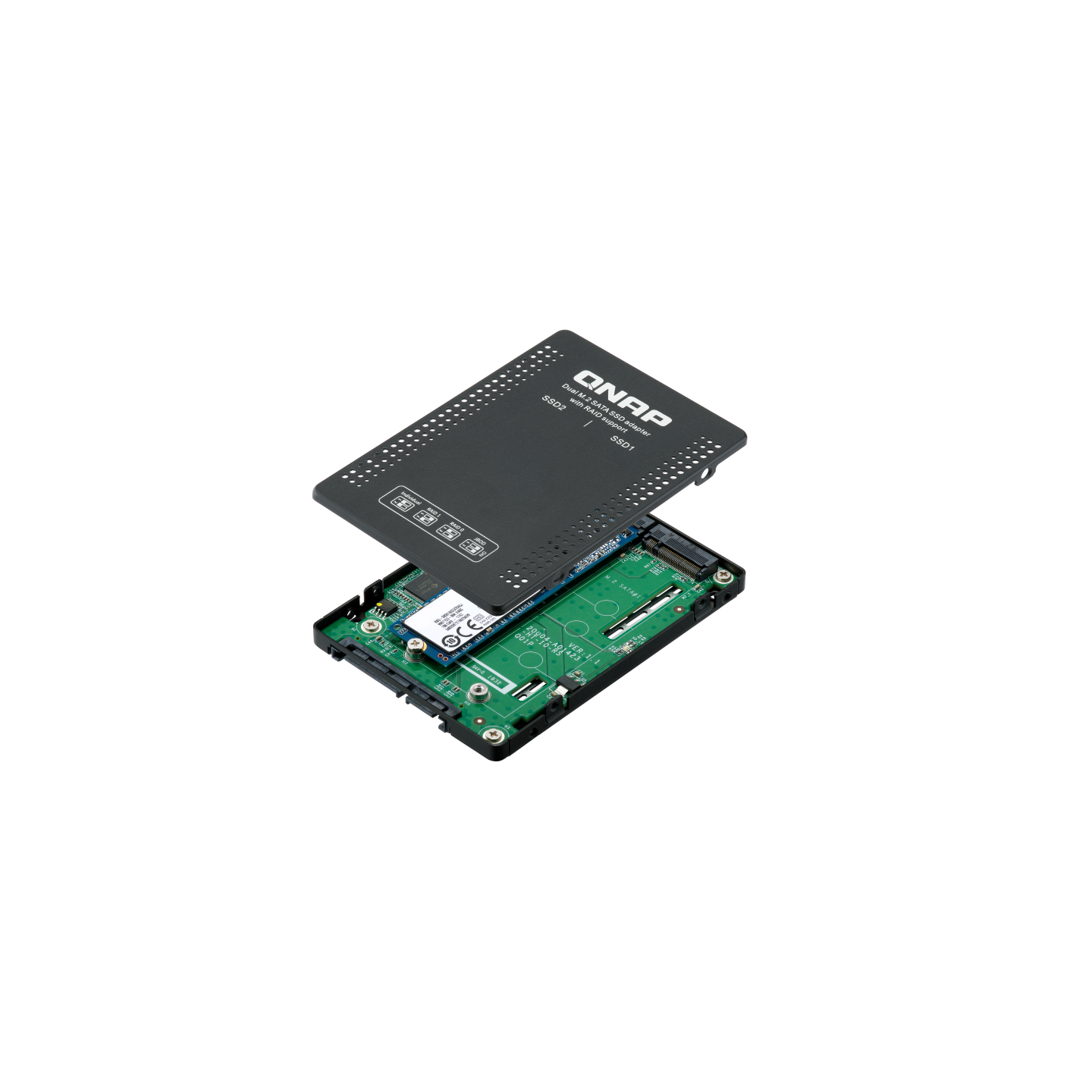

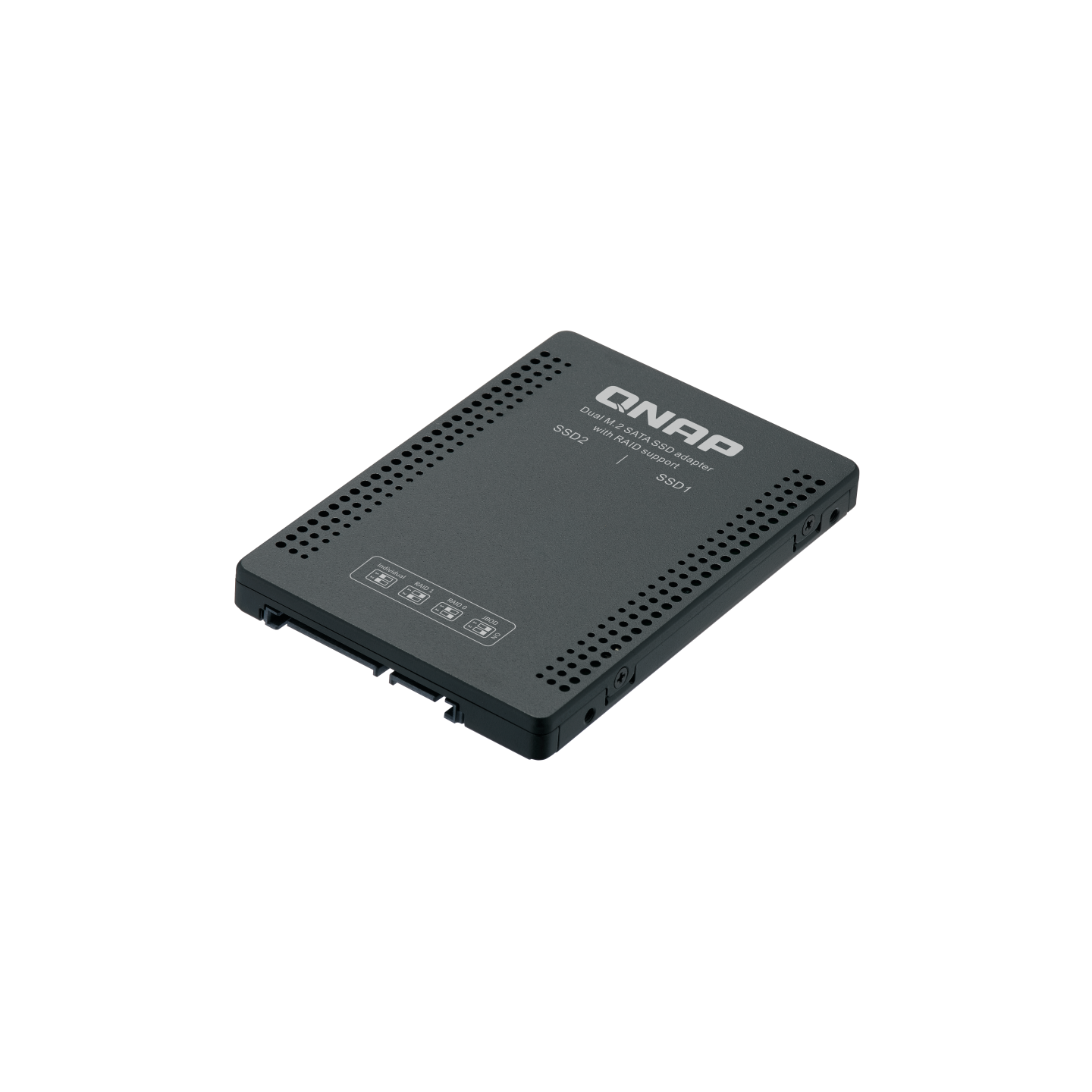

Use two M.2 SATA SSDs in a single 2.5-inch SATA drive bay with RAID support for PC and NAS

Standard Warranty 1 año

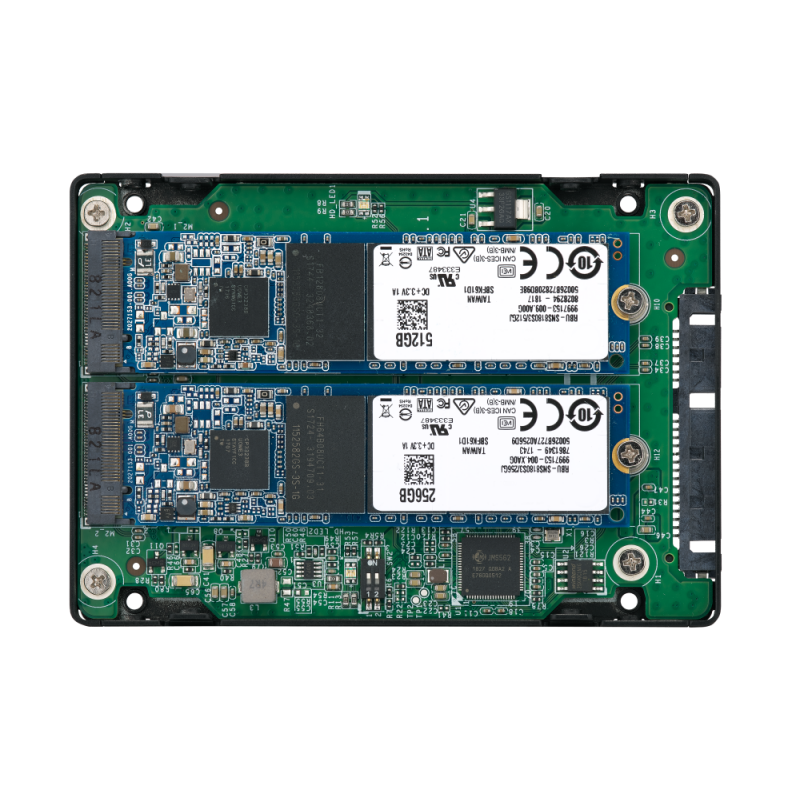

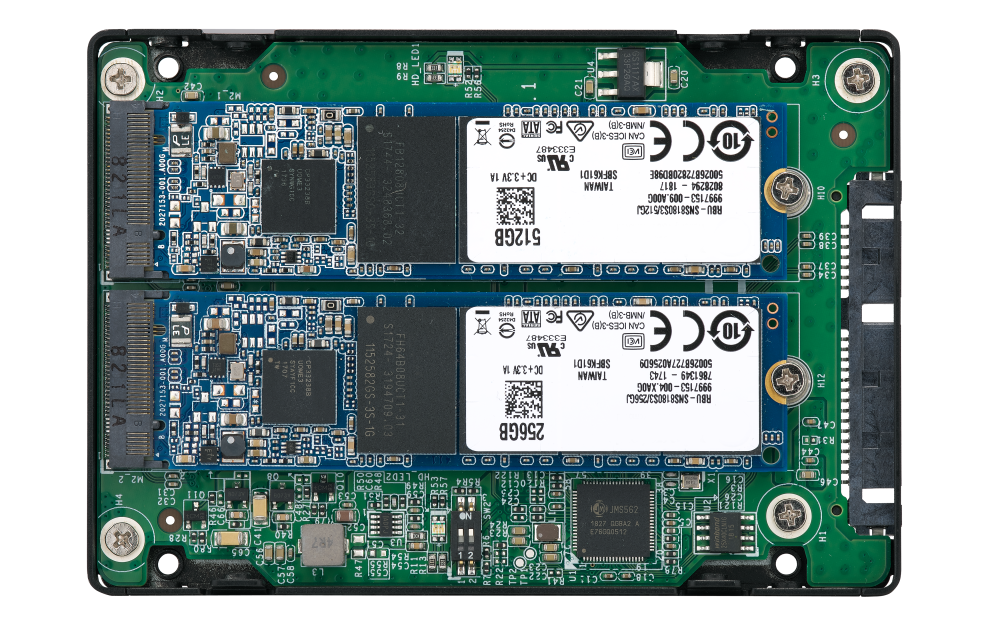

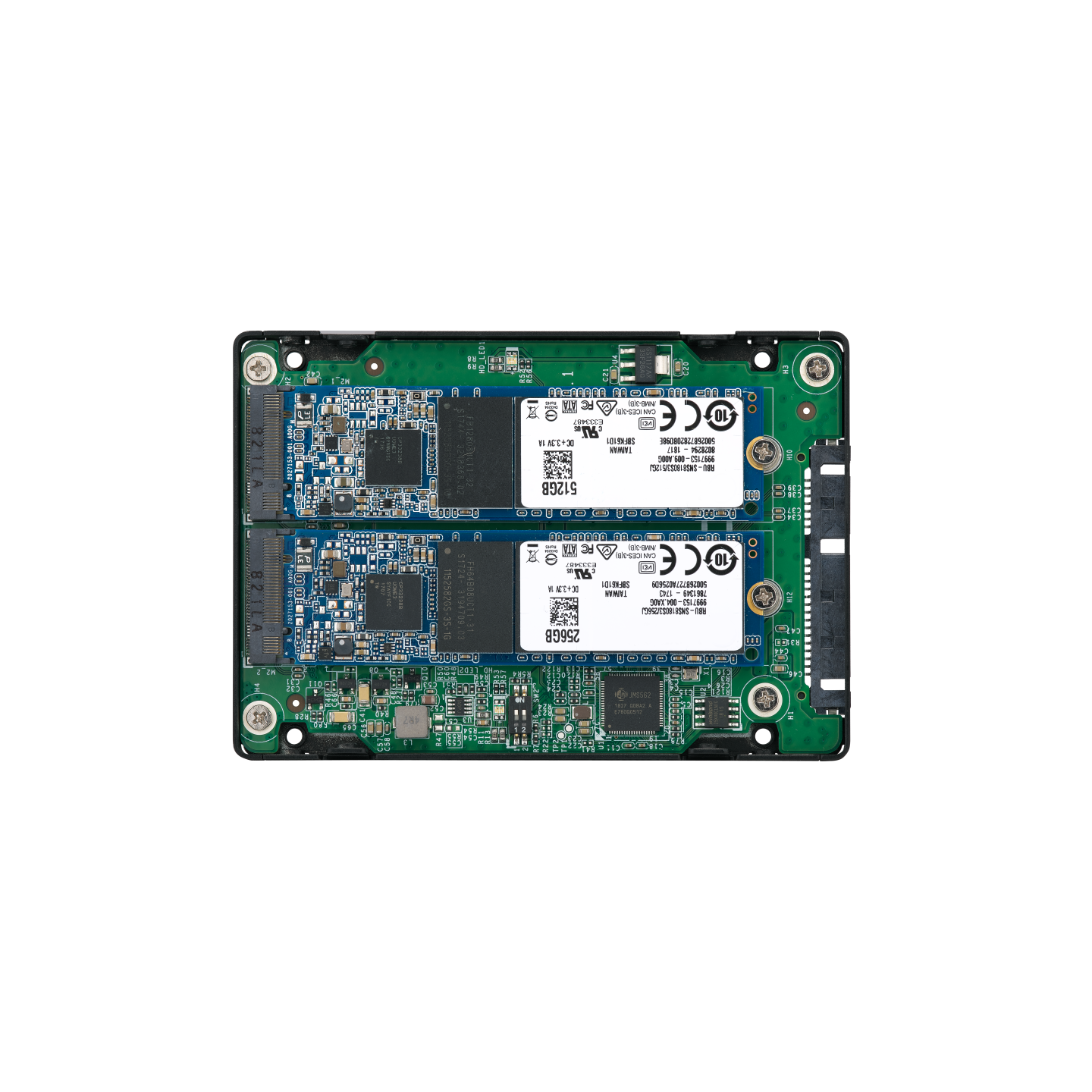

Supported Drives 2 x M.2 2280 SATA SSD (B Key)

Interfaz host SATA 6Gbps

Sistemas operativos admitidos

1. QTS 4.4.1 (or later)

2. Windows: Windows 7, 8.1, 10, Windows Server 2012 R2

3. Ubuntu

Dimensions (L x W x H) 100.5 × 69.9 × 9.5 mm

Peso 0.1 kg

Compatibilidad con RAID RAID 0, 1

Nota The connected drive may not reach its optimal performance due to protocol translation and some overhead.

All the drive data will be cleared upon drive initialization or RAID mode switching with the QDA-A2MAR. Ensure that all data is backed up beforehand.

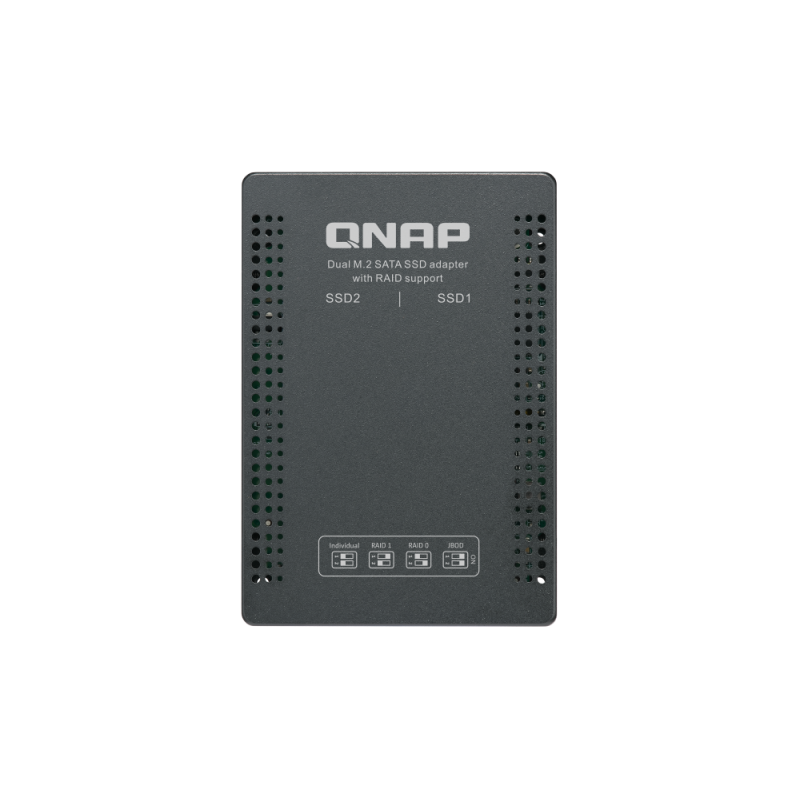

Window and Linux PC supports all four modes mentioned above. QTS does not support Individual mode.

It is recommended that only drives with identical model numbers and capacities are used to create a RAID 0/1 group because the total storage space will be equal to the size of the smallest drive.

The SATA controller of the PC must support port multipliers to recognize two drives in the Individual mode configuration. Consult your system provider and install the latest drivers for your SATA controller.

Installing a QNAP disk adapter in another QNAP disk adapter is not supported. (e.g. QDA-A2MAR cannot be installed in the QDA-A2AR.)

TR-002/TR-004 RAID expansion enclosures do not support QDA-A2AR/QDA-A2MAR.

Computer SATA ports or the USB to SATA adapters/cables that do not support 12V output (+12V_SATA) are not compatible with the QDA-A2MAR. Please consult your computer vendor for the SATA port voltage output before purchasing the QDA-A2MAR.

QTS identifies the drives of QDA-A2MAR as a single volume. Installing at least two QDA-A2MAR in the NAS is required to use Qtier function.

Software

Minimum operating system requirements

1. QNAP NAS: QTS 4.4.1 and later
2. Windows: Windows 7 and later, Windows Server 2012 R2 and later
3. Linux

Software Utility Features

• QNAP External RAID Manager
• Overview device, disks, and RAID info and status
• Support for disk’s S.M.A.R.T. monitoring
• Desktop notification to inform abnormal status
• RAID rebuild
• RAID recovery
• Firmware update
• Notification for new version of firmware and application
• System event logs for troubleshooting
• Export event logs to .csv file

Note: Actual performance may vary depending on operating environment and other factors, such as RAID mode, RAID configuration, disk model and capacity.
