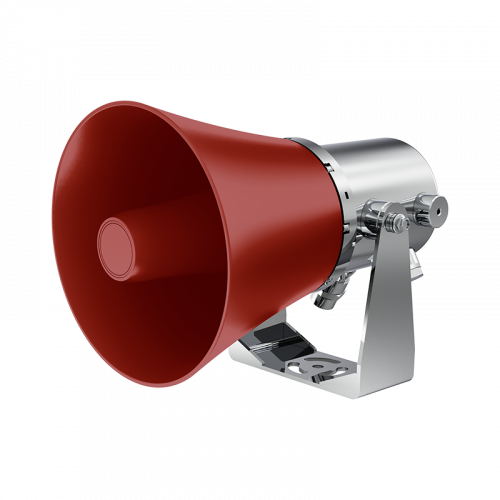

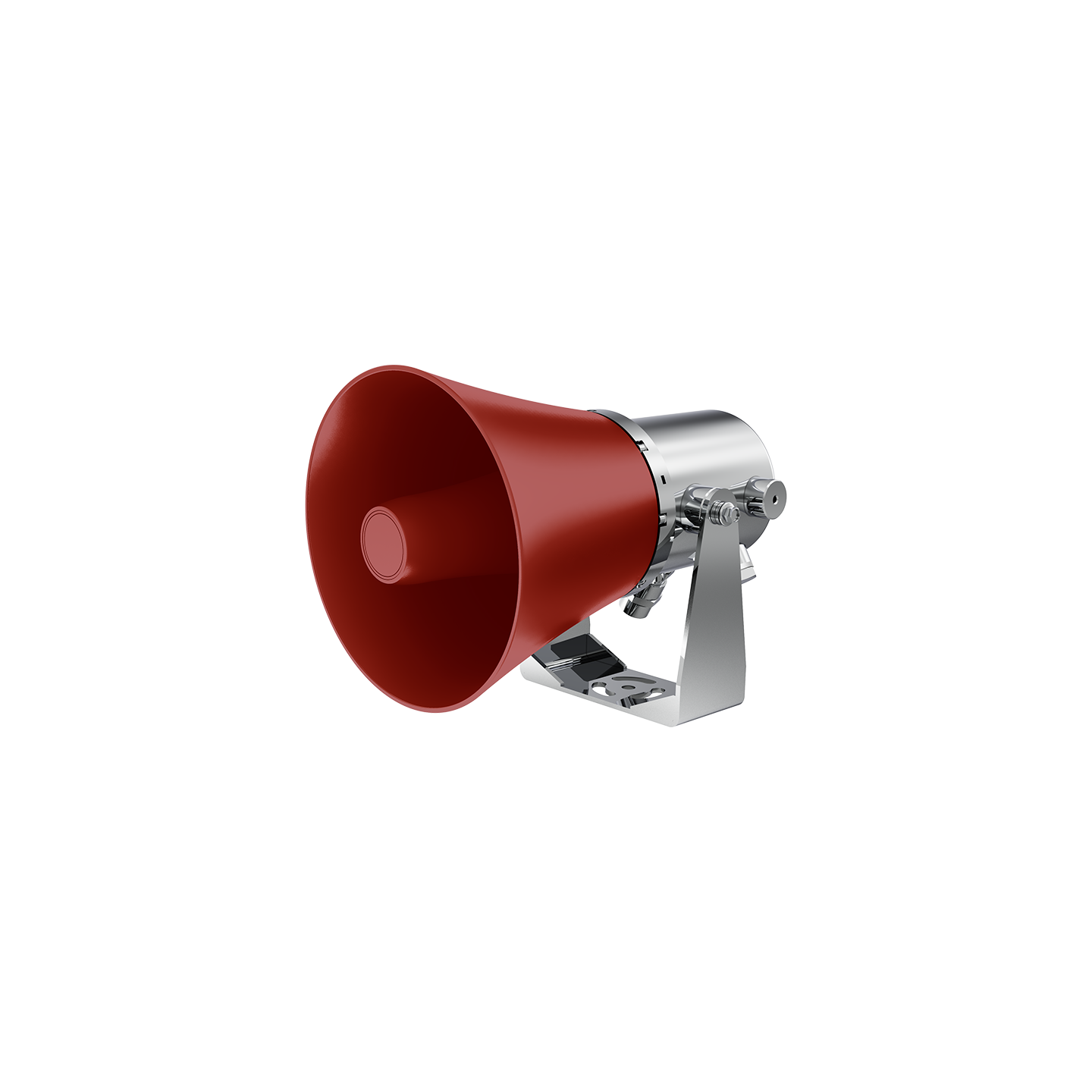

SUNELL SN-PA1H01-M-30-SS
Altavoz de bocina IP antiexplosiva de 30W
- Diseño a prueba de explosiones con certificación ATEX e IECEx
- Carcasa de acero inoxidable SUS316L, grado de protección IP67
- Salida de alta presión sonora de 107 dB
- Múltiples entradas de alimentación: compatible con CA/CC/PoE++
- Compatible con sistemas SIP y VoIP con 2 cuentas SIP
- Códecs de audio: OPUS, MP3, G.722, G.711
- Red: SIP, ONVIF, RTSP, RTP, HTTP, FTP, etc.
- Protección opcional contra sobretensiones y rayos de 6 kV
- Micrófono integrado, 1 entrada de audio, 1 entrada de alarma
Detalle de productos
|
Audio |
|
|
Codec |
OPUS (48 kHz), MP3 (44.1 kHz), G.722 ADPCM (16 kHz), G.711 PCMU (8 kHz), G.711 PCMA (8 kHz) |
|
Audio Input |
1 channel audio input |
|
Speaker |
|
|
Max SPL |
107 dB |
|
Output Impedance |
8Ω |
|
Amplifier Description |
Built-in 30W Amplifier |
|
Network |
|
|
Security |
Password protection, IP filtering, Digest authentication, user access log, built-in firewall |
|
Network Protocol |
SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP |
|
Network Interface |
10/100 Base-TX, RJ45 |
|
VoIP |
SIP protocol compatible, PBX integration Supports 2 SIP accounts, SIP direct IP call, RTP multicast Codec: Codecs: OPUS, MP3, G.722, PCMU, PCMA |
|
Microphone |
|
|
Built-in Mic |
Supported |
|
Alarm |
|
|
Alarm Input |
1ch, When receiving a switch alarm, it can play a ringtone or a custom sound. |
|
General |
|
|
Power Supply Options |
AC100V–240V 50/60Hz AC24V 50/60Hz DC24V DC12V PoE++ (DC48V) |
|
Operating Current |
≤4A |
|
Power Consumption |
≤40W (Total input including external load via power module; excludes passive terminal consumption) |
|
Operating Temperature |
-40°C to +60°C |
|
Operating humility |
<95% RH (at 25°C) |
|
Surge Protection (Optional) |
6000V TVS surge, lightning, and spike protection Complies with GB/T 17626.5 Level 4 |
|
Power Input |
100–240V AC, 50/60Hz |
|
Power Output |
100–240V AC, 50/60Hz, or 24V AC, 50/60Hz, or 24V DC, or 48V DC |
|
Material |
SUS316L Stainless Steel |
|
Ingress Protection |
IP67 |
|
Cable Glands |
1 × M25 × 1.5 and 1 × M20 × 1.5 |
|
Atmospheric Pressure |
80–110 kPa |
|
Electrical Connection |
Integrated cable |
|
Dimensions |
330.5 mm (L) × 219.2 mm (W) × 259.6 mm (H) |
|
Net Weight |
8.95 kg (excluding packaging) |
|
Languages |
English |
|
Mounting Method |
Wall mount or base mount |
