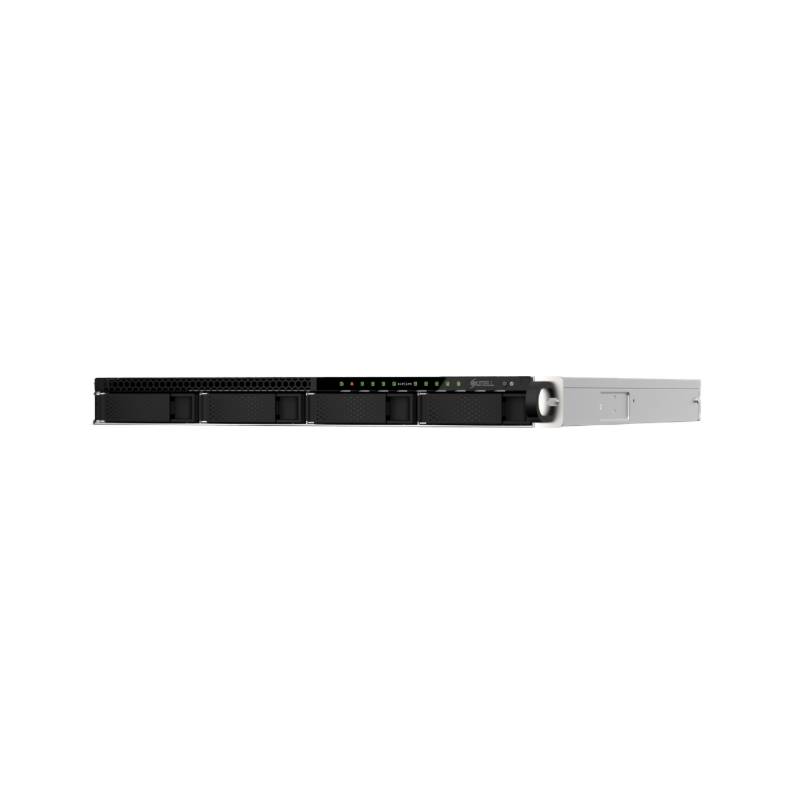

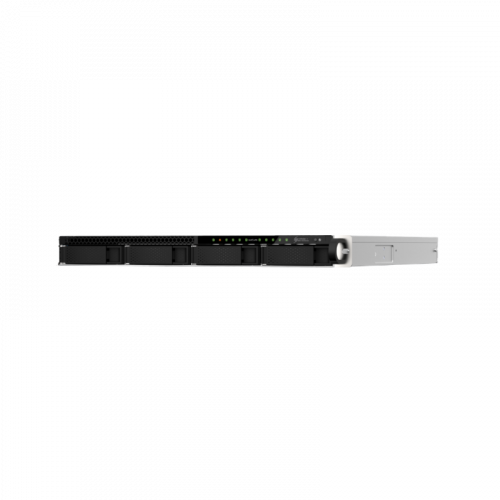

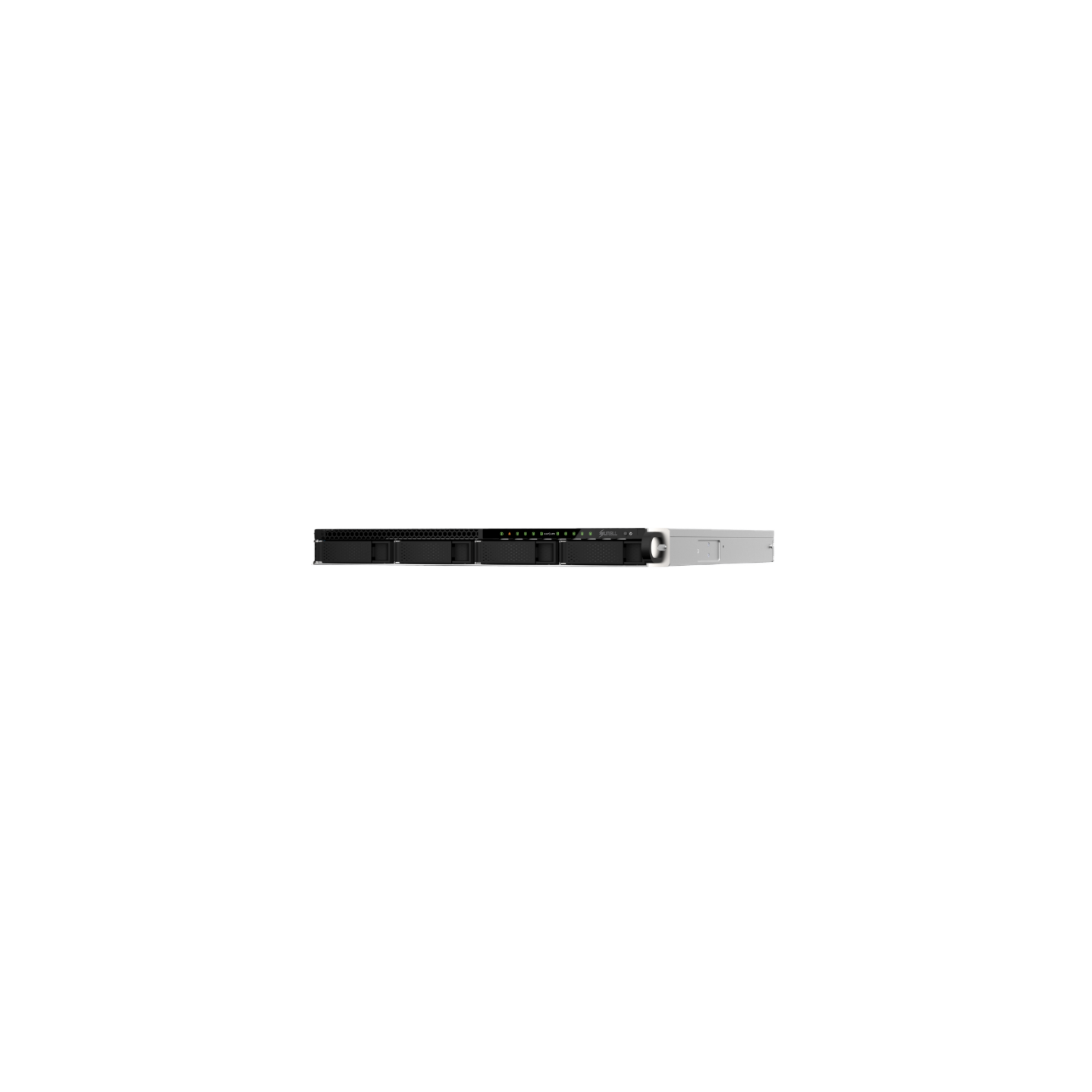

SUNELL SN-NVR7132E4-J(III)

Video Input

IP Camera Input

32 Channel Capacity / 16 - Channel Hardware License Included

Incoming Bandwidth

300Mbps

Outgoing Bandwidth

300Mbps

Video Output

HDMI 1 Output

3840 × 2160, 1920 × 1080, 1280 × 1024, 1024 × 768

Different Source Output

Support

Decoding Capacity

1ch 12MP, 4ch 8MP, 8ch 4MP, 16ch 1080P, 32ch D1

Dual Stream

Support

Multi-screen Display

1/4/8/9/16/32

AI   Recognition

Face Comparison

Real-time captured and display faces comparison results (registrant (name and ID), stranger, channel, similarity)

Multi-objective

Real-time captured and display vehicle, human body, non-motor vehicle, license plates image, and faces comparison results (registrant, stranger, channel, similarity)

Smart Search

Time, Properties, Pictures, License plate

Trigger Events

Buzzer, Alarm push, Alarm prompt, Email, Alarm Out, Compare the result simultaneously, etc.

Recording

Resolution

12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, D1 etc.

Recording Mode

Manual, Schedule (Regular, Continuous), Event

Trigger Events

Motion Detection, Video Loss, Alarm in, IVS

Playback and Backup

Sync Playback

16/9/4/1

Search Mode

Time /Date, Alarm, Picture grid, Event

Backup Mode

USB Device, Network

Alarm

General Alarm

Motion Detection, Video Loss, Alarm in, Alarm out

Intelligent Analysis

(By Camera)

Smoking Detection, Smoke and Fire Detection, Fire Spot Detection, Intrusion, Single Line Crossing, Double Line Crossing, Loitering, Wrong-way, Illegal Parking, People Counting, Smart motion detection, Enter Area, Leave Area, etc.

Abnormal Alarm

Disk Alarm, IP Address Conflict, Network Disconnect

Intrusion Detection

(By NVR)

4-ch, support the accurate detection of human and vehicle

Network

Network Function

HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP, 3G/4G, PPPoE

Remote Users

8 users

P2P

Support

Interoperability

ONVIF, SDK, CGI

Storage

ANR

Support

Disk Group

Support

RAID

RAID 0, RAID 1, RAID 5, RAID 6, RAID 10

Interface

HDD Interface (*)

4 SATA interfaces, up to 16TB capacity for each disk configurable. Default 1 8TB SATA Enterprise HDD.

Network Interface (*)

2 × RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port

HDMI

1

Audio In/Out

1/1

USB Interface

Front panel: 2 × USB 2.0, Rear panel: 2 × USB 3.0

Reset Button

On-board reset button

Mouse

Included

General

Random Access Memory (RAM)

16 GB

Security

FIPS 140

Power Supply (*)

220V AC - 50Hz - 3.5A

Power Consumption

< 100 W (without HDD)

Operating Conditions

-10 °C to 50 °C (14 °F to 122 °F)

Storage Conditions

Less than 90% RH

Certifications

CE/FCC

Dimensions (L×W×H)

560 × 437.5 × 44.5 mm (22.05 × 17.22 × 1.75 inch)

Net Weight

7.3 kg (16.09 lb) without HDD

Warranty

5 Years
