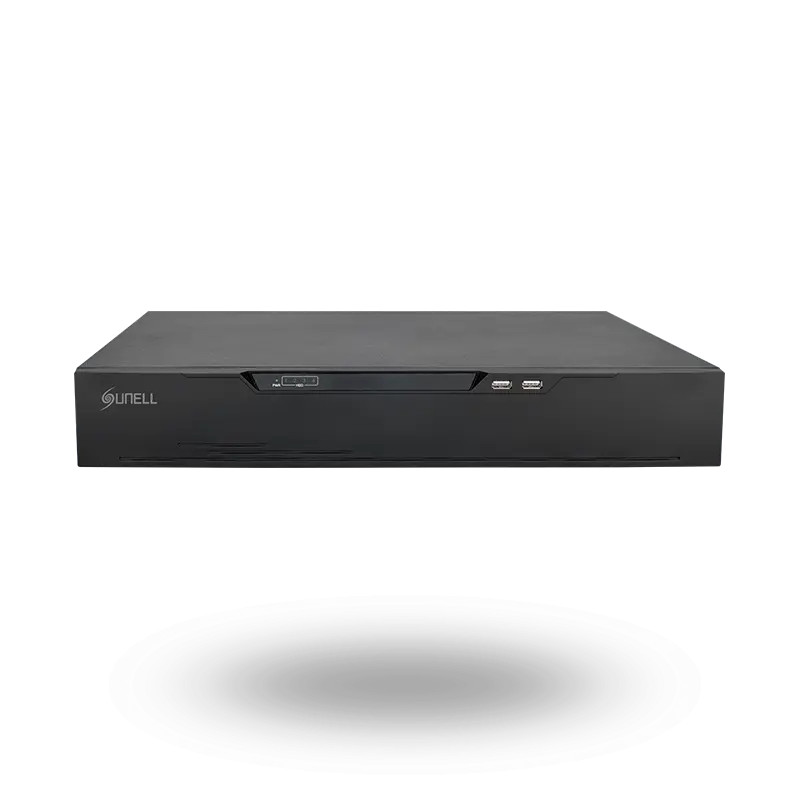

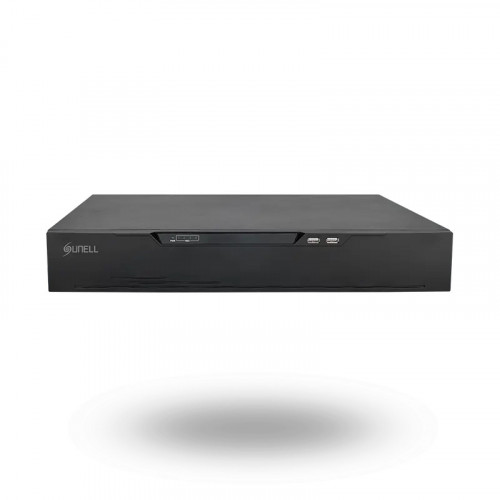

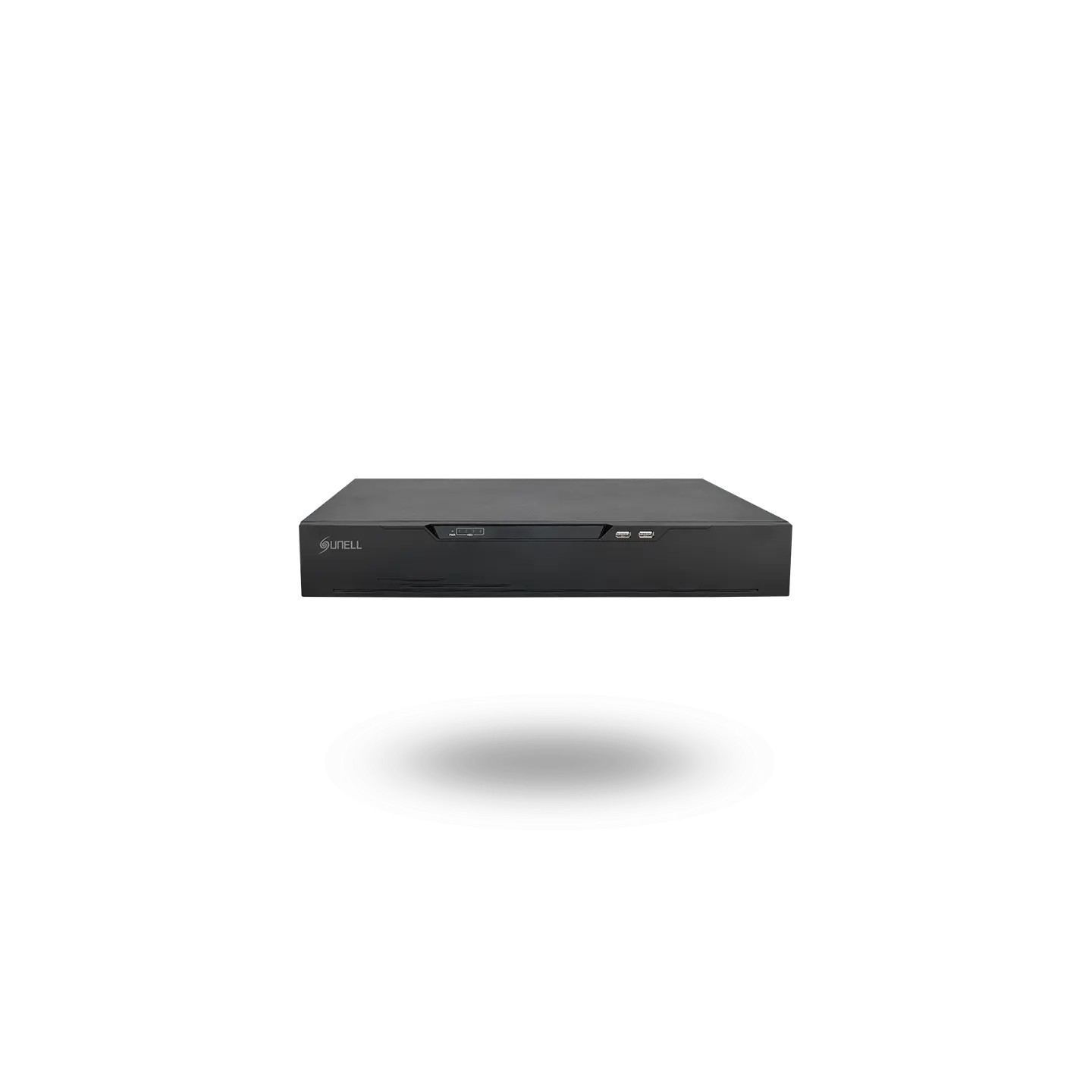

SUNELL SN-NVR3964E4-P16-J

Video Input

IP Camera Input

64 Channel

Incoming Bandwidth

400 Mbps

Outgoing Bandwidth

400 Mbps

Video Output

HDMI 1 Output

3840 × 2160, 1920 × 1080, 1280 × 1024, 1024 × 768

HDMI 2 Output

1920 × 1080, 1280 × 1024, 1024 × 768

VGA Output

1920 × 1080, 1280 × 1024, 1024 × 768

Different Source Output

Support

Decoding Capacity

1ch 12MP, 4ch 8MP, 8ch 4MP, 16ch 1080P, 32ch D1, 64ch D1

Dual Stream

Support

Multi-screen Display

1st Screen: 1/4/8/9/16/32/36/64

2nd Screen: 1/4/8/9/16

AI Recognition

Face Comparison

Real-time captured and display faces comparison results (registrant (name and ID), stranger, channel, similarity)

Multi-objective

Real-time captured and display vehicle, human body, non-motor vehicle, license plates image, and faces comparison results (registrant, stranger, channel, similarity)

Smart Search

Time, Properties, Pictures, License plate

Trigger Events

Buzzer, Alarm push, Alarm prompt, Email, Alarm Out, Compare the result simultaneously, etc.

Recording

Resolution

12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, D1 etc.

Recording Mode

Manual, Schedule (Regular, Continuous), Event

Trigger Events

Motion Detection, Video Loss, Alarm in, IVS

Playback and Backup

Sync Playback

16/9/4/1

Search Mode

Time /Date, Alarm, Picture grid, Event

Backup Mode

USB Device, Network, eSATA

Alarm

General Alarm

Motion Detection, Video Loss, Alarm in, Alarm out

Intelligent Analysis

(By Camera)

Smoking Detection, Smoke and Fire Detection, Fire Spot Detection, Intrusion, Single Line Crossing, Double Line Crossing, Loitering, Wrong-way, Illegal Parking, People Counting, Smart motion detection, Enter Area, Leave   Area, etc.

Abnormal Alarm

Disk Alarm, IP Address Conflict, Network Disconnect

Intrusion Detection

(By NVR)

4-ch, support the accurate detection of human and vehicle

Network

Network Function

HTTP, HTTPS, TCP/IP, IPv4, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP, 3G/4G, PPPoE

Remote Users

8 users

P2P

Support

Interoperability

ONVIF, SDK, CGI

Storage

ANR

Support

Disk Group

Support

RAID

RAID 0, RAID 1, RAID 5, RAID 6, RAID 10

Interface

HDD Interface

4 SATA interfaces, up to 16TB capacity for each disk

Network Interface

2 × RJ-45, 10/100/1000 Mbps self-adaptive Ethernet port

PoE Interface

16 ports, 10/100Mbps, 802.3af/at, max 140W

eSATA

1 eSATA Interface

HDMI

2

VGA

1

Audio In/Out

1/1

Alarm In/Out

16/6

USB Interface

Front panel: 2 × USB 2.0, Rear panel: 2 × USB 3.0

RS-485 Interface

1

RS-232 Interface

1

Reset Button

On-board reset button

General

Power Supply

100 to 240VAC

Power Consumption

< 15 W (without HDD)

Operating Conditions

-10 °C to 50 °C (14 °F to 122 °F)

Storage Conditions

Less than 90% RH

Certifications

CE/FCC

Dimensions

440 × 368.8 × 70 mm (17.32 × 14.52 × 2.76 inch)

Net Weight

4.8 kg (10.58 lb) without HDD
