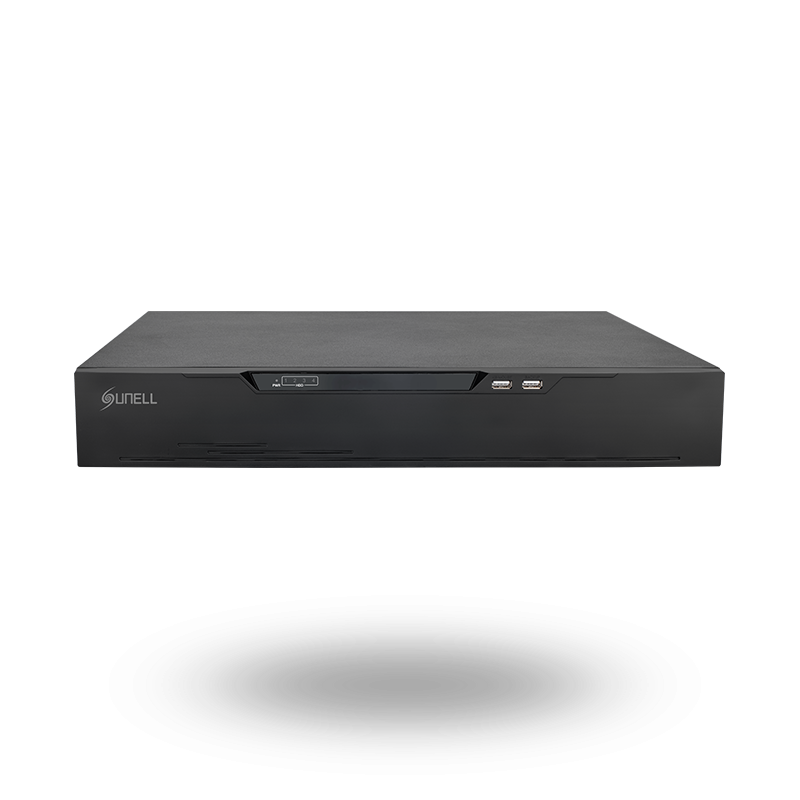

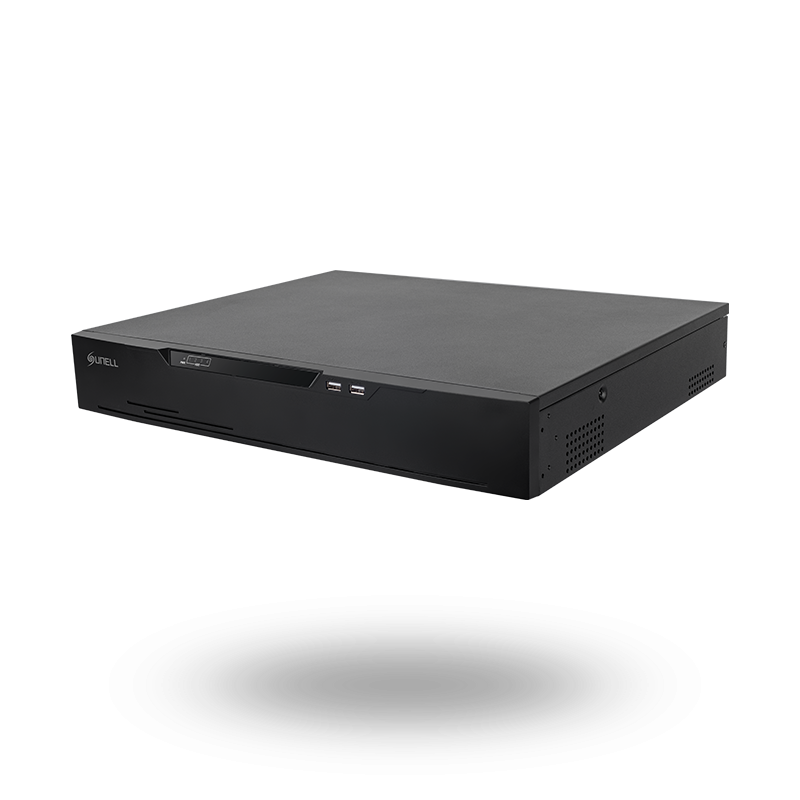

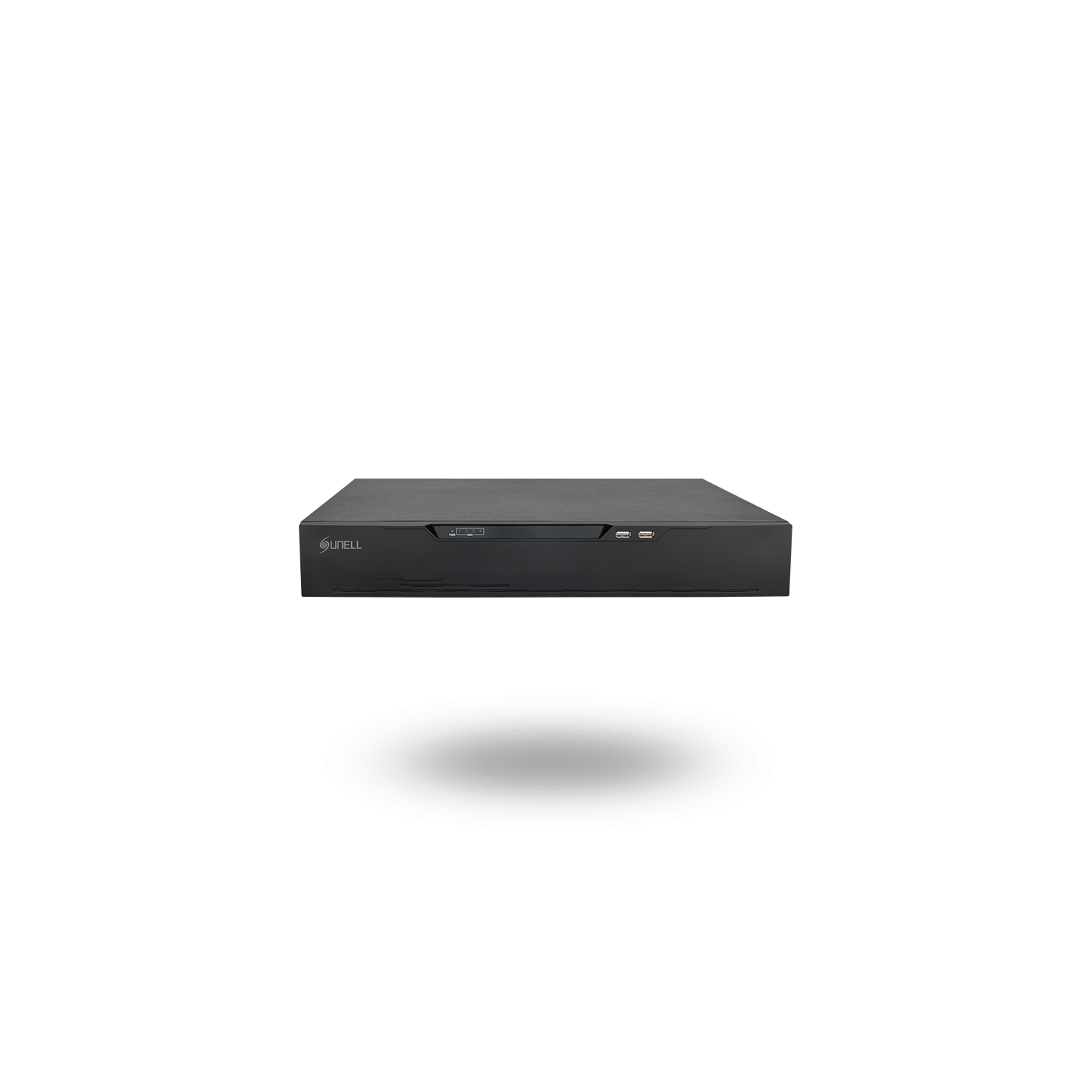

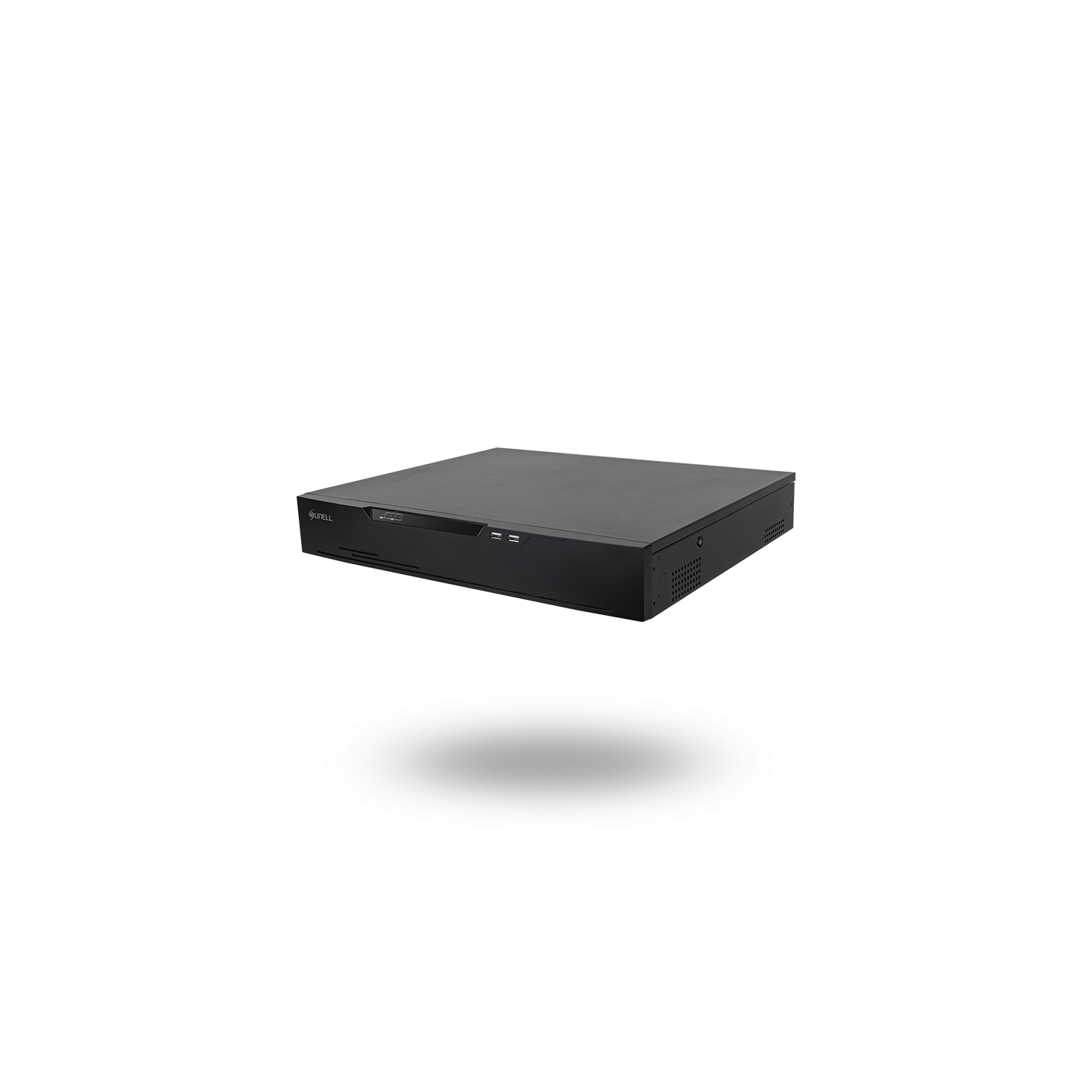

NVR con IA de 32 canales (16 canales PoE), 4 bahías.
Video Input |
|
|
IP Camera Input |
32 Channel |
|
Incoming Bandwidth |
320Mbps |
|
Outgoing Bandwidth |
320Mbps |
Video Output |
|
|
HDMI Output |
3840×2160, 1920×1080, 1440×900, 1280×1024 |
|
VGA Output |
1920×1080, 1440×900, 1280×1024 |
|
Different Source Output |
Support |
|
Decoding Capacity |
1ch 12MP, 4ch 8MP, 8ch 4MP, 16ch 1080P, 32ch D1 |
|
Dual Stream |
Support |
|
Multi-screen Display |
1st Screen: 1/4/8/9/16/32/36 2nd Screen: 1/4/8/9/16 |
AI Recognition |
|
|
Face Comparison |
Real-time captured and display faces comparison results (registrant (name and ID), stranger, channel, similarity) |
|
License Plate |
Real-time captured and display license plates and database comparison results (channel, time, license plate, library and expiration time) |
|
Multi-objective |
Real-time captured and display vehicle, human body, non-motor vehicle, license plates image, and faces comparison results (registrant, stranger, channel, similarity) |
|
Body Temp-filter |
Real-time body temperature screening and display temperature recording and over temperature snapshots |
|
Smart Search |
Time, Properties, Pictures, Gender, Cycling style, Vehicle color, License plate |
|
Trigger Events |
Buzzer, Alarm push, Alarm prompt, Email, Alarm Out, Compare the result simultaneously, etc. |
Face Recognition |
|
|
Performance |
Max 20 face pictures/sec processing |
|
Stranger Mode |
Detect strangers faces (not in device's face database) Similarity threshold can be set manually |
|
Smart Search |
Search for image by image Search image by properties |
|
Database Management |
Up to 16 face databases with 10,000 face images in total |
|
Database Application |
Every data can be applied to any channel |
License Plate Recognition |
|
|
Comparison |
Real-time captured and display license plates and database comparison results (channel, time, license plate, library and expiration time) |
|
Smart Search |
Search image by time and license plate |
|
Database Management |
Up to 16 license plate libraries with 10,000 license plate images in total Support for custom configuration, import, export |
|
Database Application |
Every data can be applied to any channel |
Multi-objective |
|
|
Face |
Real-time captured and display faces comparison results |
|
License plate |
Real-time captured and display license plates and database comparison results |
|
Vehicle |
Real-time captured and display vehicle image |
|
Human Body (Non-motor Vehicle ) |
Real-time captured and display human body, non-motor vehicle image |
|
Smart Search |
Time, Properties, Gender, Cycling style, Vehicle color, License plate |
Body Temp-filter |
|
|
Performance |
Max 20 face pictures /sec processing |
|
Temperature |
Real-time display of temperature measurement results |
|
Smart Search |
Time, Person Type, Temperature Type, ID |
Attendance |
|
|
Data Management |
Supported attendance library, time, search type search attendance details, and export query result |
|
Rules Setting |
Setting working hours, working days, effective check-in time and effective check-out time |
|
Library |
Support to add and delete from face library |
|
Check Point Settings |
Tabular display of attendance point information (channel name, attendance base, similarity, enabled status, operate) Single channel attendance point information editing, attendance point channel switch, similarity setting, attendance library selection |
Recording |
|
|
Resolution |
12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, D1 etc. |
|
Recording Mode |
Manual, Schedule (Regular, Continuous), Event |
|
Trigger Events |
Motion Detection, Video Loss, Alarm in, IVS |
Playback and Backup |
|
|
Sync Playback |
16/9/4/1 |
|
Search Mode |
Time /Date, Alarm, Picture grid, Event |
|
Backup Mode |
USB Device, Network, eSATA |
Network |
|
|
Interface |
1 RJ-45 port (10/100/1000Mbps) |
|
PoE |
16 Ports (IEEE 802.3af), 128W |
|
Network Function |
HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, UDP, RTSP, SMTP, NTP, DNS, DHCP, P2P, IP Filter, DDNS, 802.1X, SNMP, 3G/4G, PPPoE |
|
Remote Users |
8 users |
|
Smart Phone |
iPhone, iPad, Android |
|
Interoperability |
ONVIF, SDK, CGI |
Storage |
|
| HDD | 4 SATA Ports, up to 12TB for each HDD |
| eSATA | 1 eSATA Port |
| Cloud Storage | Support |
Disk Array |
|
| Array Type | RAID 5, RAID 6, RAID 10 |
Interface |
|
| Audio I/O | 1/1 |
| Alarm Input | 2ch |
| Alarm Output | 2ch |
| USB | 3 ports (USB 2.0 × 2, USB 3.0 × 1) |
| RS485 | 1 Port |
| RS232 | 1 Port |
General |
|
|
Power Supply |
AC100 ~ 240V |
|
Power Consumption |
< 15 W (without HDD) |
|
Operating Conditions |
-10 °C ~ 50 °C (14 °F ~ 122 °F) |
|
Storage Conditions |
Less than 90% RH |
|
Certifications |
CE/FCC ISO 9001:2015 (Quality Management System) |
|
Dimensions |
440 × 368.3 × 70 mm (17.32 × 14.5 × 2.76 inch) |
|
Net Weight |
4.5 kg (9.92 lb) without HDD |
