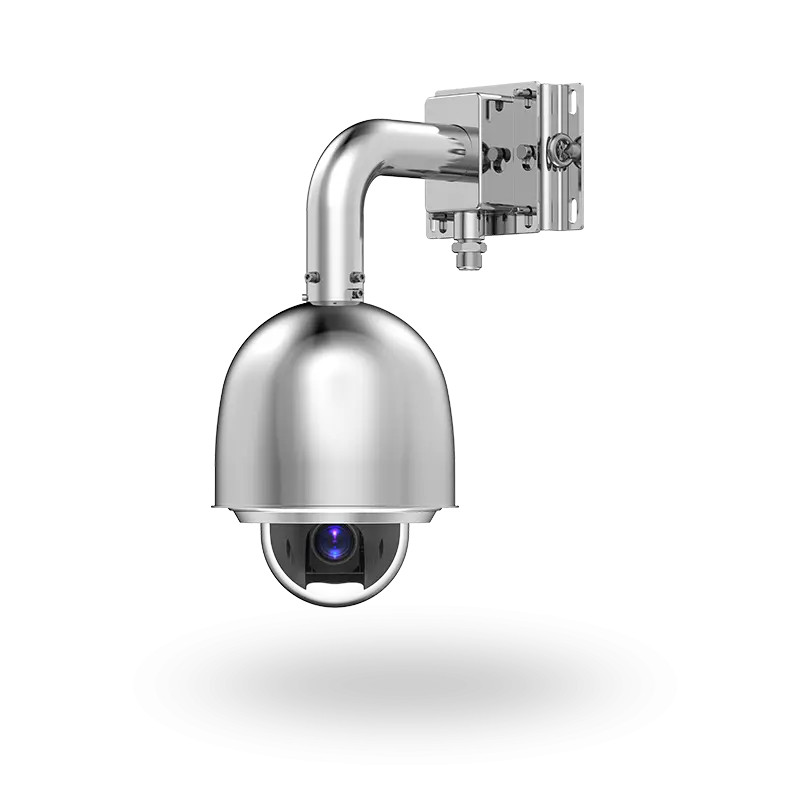

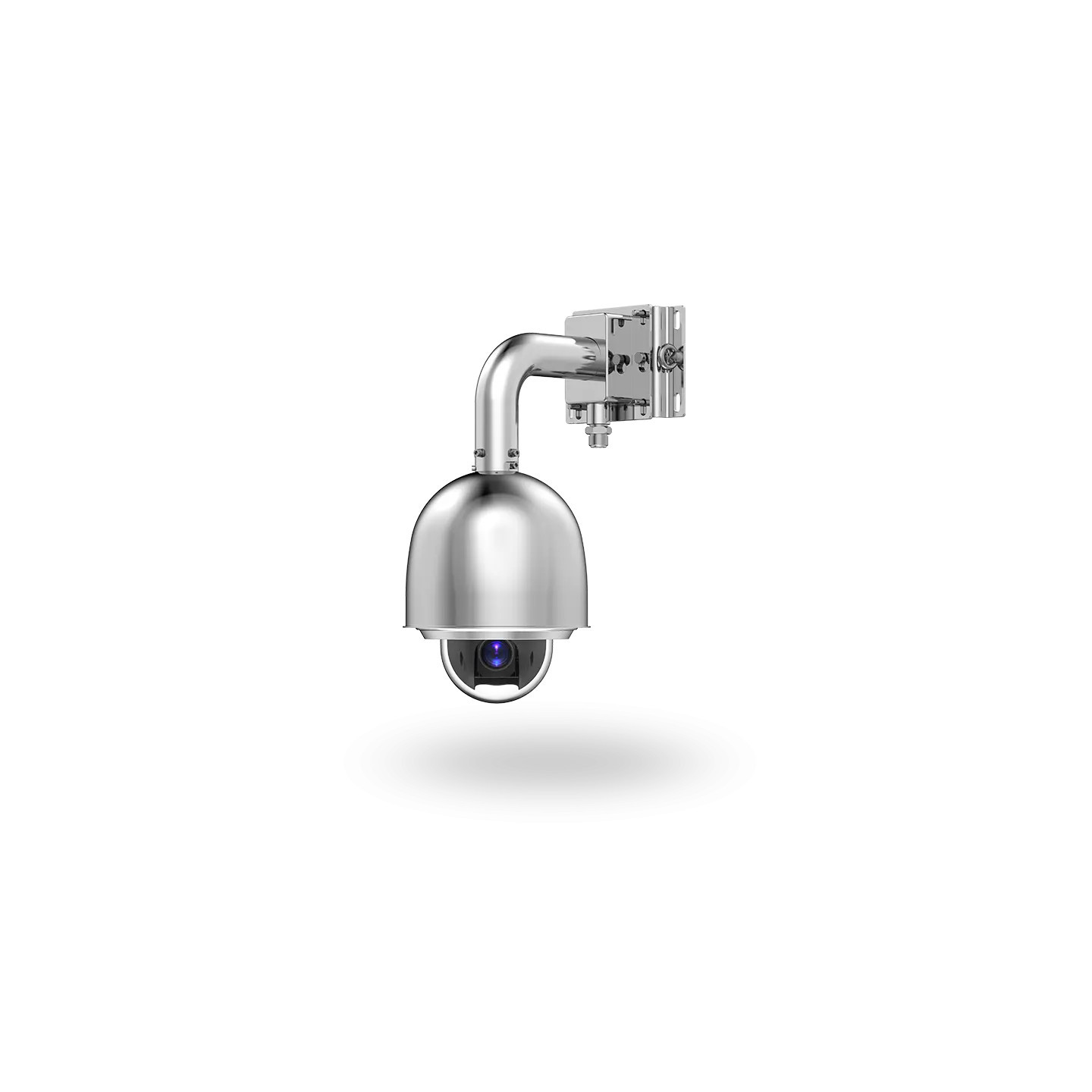

SUNELL SN-IPS8652PCDN(-K)-Z15-SS

Camera

Image Sensor

1/2.8”Progressive Scan CMOS

Max. Resolution

5MP, 2592(H) × 1944(V)

Electronic Shutter

Auto/Manual, 1/5 to 1/20,000s

Min. illumination

Color: 0.01 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON)

Day & Night

Auto (ICR)

Wide Dynamic Range

True WDR

Lens

Focal Length

5.3 to 79.5 mm, 15x Optical Zoom

Max. Aperture

F1.6 to F2.8

Angle of View

H: 56.2° to 4.5°, V: 42.3° to 3.3°

Zoom Speed

Approx. 2.5 s

Digital Zoom

16x

Iris Control

Auto/Manual

Focus Control

Auto/Manual/Semi-automatic

DORI

DORI Distance (Detection)

104 to 1,560 m (341.21 to 5,118.11 ft)

DORI Distance (Observe)

41.6 to 624 m (136.48 to 2,047.24 ft)

DORI Distance (Recognize)

20.8 to 312 m (68.24 to 1,023.62 ft)

DORI Distance (Identify)

10.4 to 156 m (34.12 to 511.81 ft)

DORI (Detect, Observe, Recognize, and Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered   area. The numbers in this table do not reflect intelligent function distances.

Intelligent Analytics

Multi-Object Detection

Support face, human, vehicle detection and capture

Smoke and Flame Detection

Support

Intelligent Analysis

Intrusion, Single line crossing, Double line crossing, Loitering, Wrong-way, Illegal parking, Smart Motion   Detection

(support the accurate detection of vehicle and human)

People Counting

Support

Smart Tracking

Support

Video and Audio

Streaming Capability

3 Streams

Stream/Frame Rate

Stream1: 2592×1944, 2592×1520, 1920×1080, 1280×720 @25/30fps

Stream2: D1, VGA, CIF @25/30fps

Stream3: VGA, CIF, QVGA @25/30fps

Bit Rate Control

CBR/VBR

Bit Rate

Stream1: 200 kbps to 12 Mbps

Stream2: 100 kbps to 6 Mbps

Stream3: 100 kbps to 3 Mbps

Smart Encoder

Support

Region of Interest (ROI)

Support


Image Adjustment

Brightness, Sharpness, Contrast, Saturation adjustable

Scene Setting

Indoor, Outdoor, Mirror

Exposure Mode

Auto, Manual, Shutter priority, Iris priority

White Balance

Auto, Tungsten, Fluorescent, Daylight, Shadow, Manual

Day/Night Setting

Auto, Day, Night, Timer

Noise Reduction

2D/3D DNR

Image Enhancement

HLC, BLC, Defog, WDR, Anti-shake

Privacy Masking

Support 40 zones, mask color configurable

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless, Tilt: 0° to +90° (auto-flip)

Pan Speed

Pan speed: 0.1° to 200°/s, preset speed: 200°/s

Tilt Speed

Tilt speed: 0.1° to 160°/s, preset speed: 160°/s

Presets

300

Patrol Scan

6 Track, 12 Scan, 12 Patrol (up to 32 presets each patrol)

Power-Off Memory

Support

3D Positioning

Support

PTZ Status Display

Support

Idle Motion

The time can be set (1-240 minutes), and functions such as preset positions, patrols, scans, and tracks can be   run.

Event

Alarm Triggers

IVS, Motion detection, Network alarm, Disk alarm

Alarm Events

Alarm record, FTP upload, SMTP upload

Network

Protocols

IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/ RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, SMTP, 802.1x, SNMP, Multicast

Interoperability

ONVIF (Profile S/T/G/M), SDK, CGI

User/Host Level

Up to 10 users, 3 levels: Administrator, Operator, Media user

Security

IP address filter, encrypted HTTPS, Illegal login lock, IEEE 802.1x

Web Viewer

<IE11, Chrome, Firefox, Microsoft Edge

Interface

Network Interface

1 Ethernet (10/100 Base-T) RJ-45 Connector

Fiber Optical

-K: 1 single module fiber interface

SD Card Slot

Built-in, up to 256GB

Reset Button

Support

General

Language

English, Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian. Default: English

Power Supply

100 to 240VAC

Power Consumption

Less than 15W

Operating Temperature

-20°C to 60°C (-4°F to 140 °F)

Operating Humidity

Less than 90% RH

Ingress Protection

IP68

Certifications

CE-EMC (EN 55032:2015+A1:2020, EN IEC 61000-6-3:2021, EN IEC 61000-3-2:2019+A12021, EN 61000-3-3:2013+A2:2021, EN 55035:2017+A11:2020, EN 50130-4:2011+A1:2014)

FCC (FCC 47 CFR 15, Subpart B, ANSI C63.4-2014)

ATEX: Ex II 2GD Ex db IIC T6 Gb /Ex tb IIIC T80°C Db;

IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80°C Db

Material

SUS316L

Dimensions

φ238 × 386 mm (φ9.37 × 15.2 inch)

Net Weight

15 Kg (33.07 lb)
