Características principales
- Admite protocolo de transmisión SIP y UDP
- Amplificador de potencia integrado de 20 W para controlar el altavoz directamente
- Alimentado desde el cable de red IP mediante PoE+ IEEE 802.3at
- Configuración Remota y Actualización de Firmware por HTTPS
Arquitectura del sistema
Detalle de productos
Product Information
Model

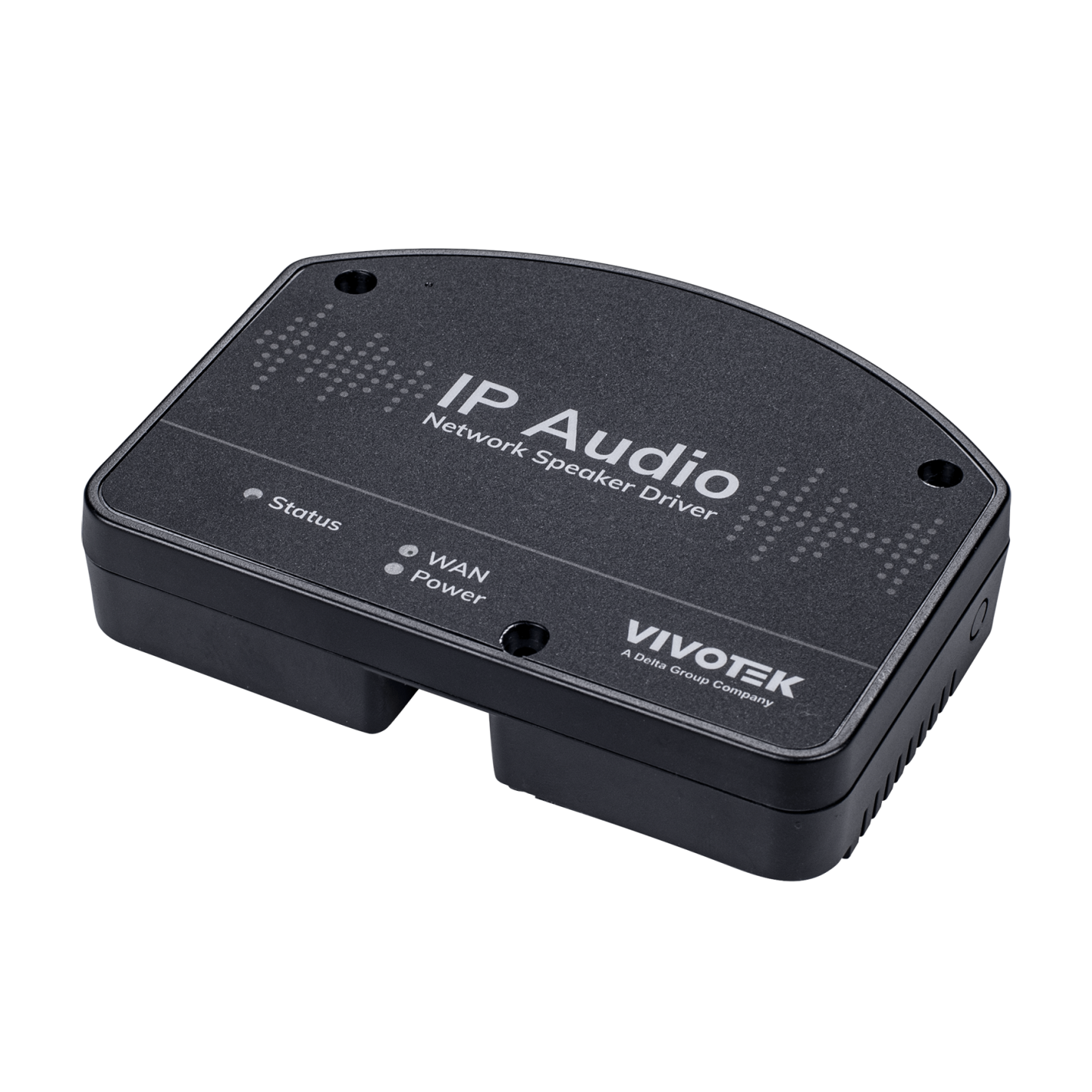

AU-002
Driver Impedance
Lower to 3 ohm speaker totally
Average Min. Power
20 W
Microphone
100Hz-16KHz Single point, SPL-44 ± 2db AT 2 KΩ
LED Luminous
3x LED display status
Network
SIP Support
RFC 3261(SIP base standard)
Interface
WAN: RJ-45x1, 10/100Mbps Fast Ethernet port
Supported Protocols
SIP, IPv4/v6, RIPv2 / OSPF, HTTPS, QoS DSCP, FTP, TFTP, SNMP v2c / v3, SNMP, IGMP, DHCP, SSHv2, PIM- DVMRP, RMON
Audio Codec
G.711 a/uLaw, G.726, G.722, G.729, iLBC, L16
Support Function
Auto provision, Audio tone testing, System log
Security
Password protection, IP address filter, user access log, authentication
VAST 2 Integration (Extension License Required)
Two-way Communication
Supported
Automatic Trigger Audio Clips
Supported
General
Casing
Plastic
Power
PoE+ (Power over Ethernet), IEEE 802.3at
Operating Temperature
-35°C ~ 60°C (-31°F ~ 140°F)
Dimensions
110 x 85 x 25 mm
Weight
115 g
Certifications
CE, FCC, LVD EN62368-1
Warranty
24 months
