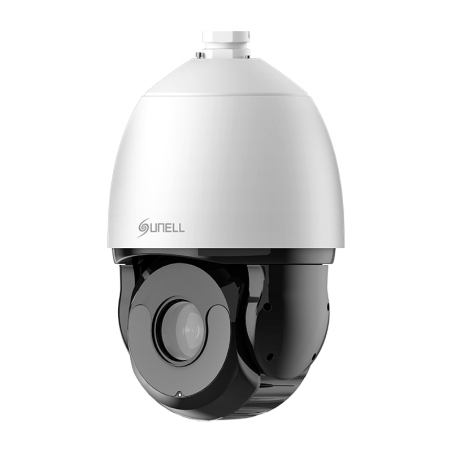

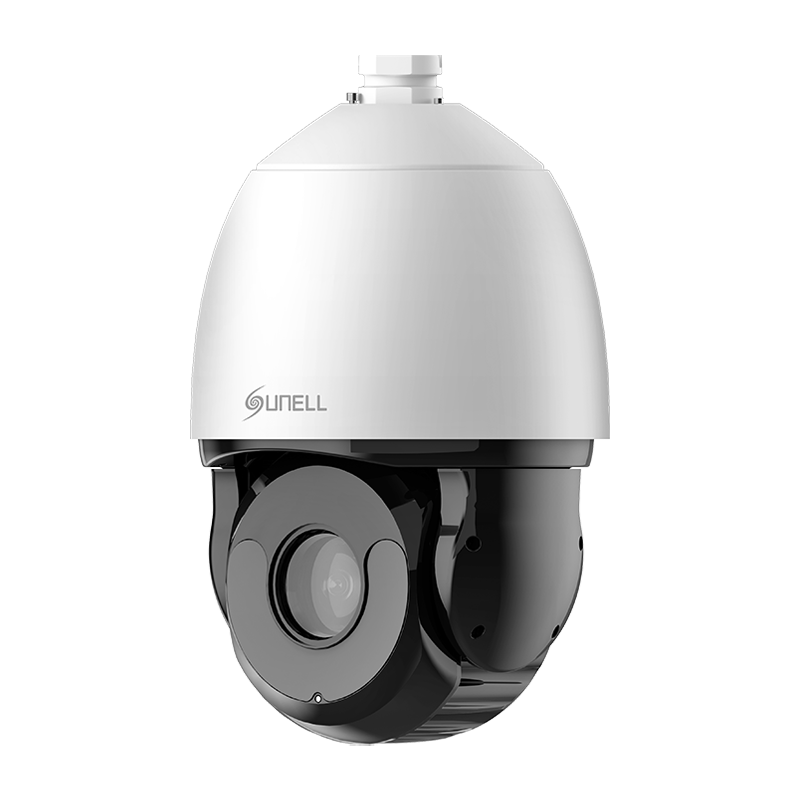

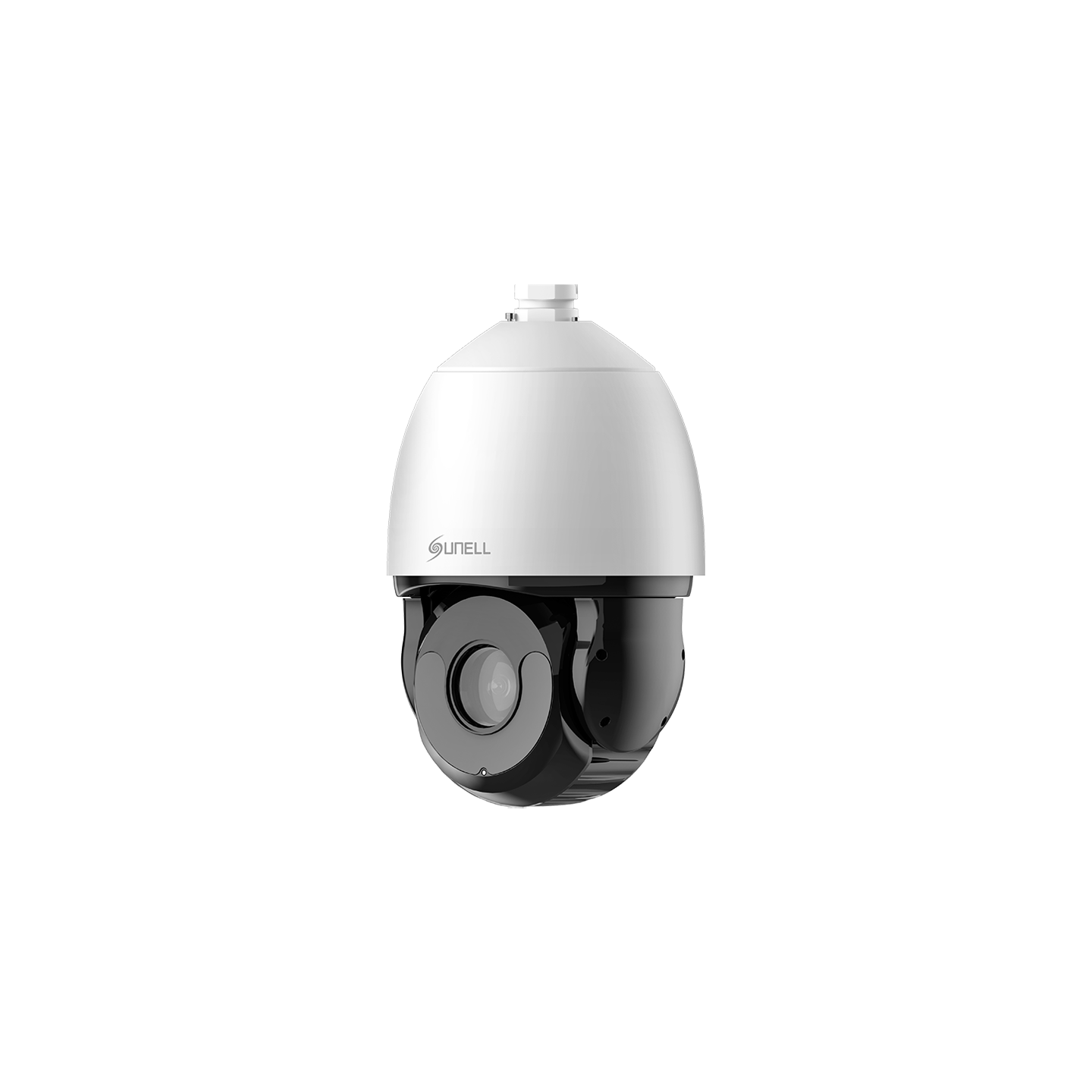

SUNELL SN-IPS8641VDL-Z37

Camera

Image Sensor

1/1.8” Progressive Scan CMOS

Max Resolution

4MP, 2592(H) × 1520(V)

Shutter Speed

1/5 to 1/20,000s

Min Illumination

Color: 0.001 Lux @ (F1.5, AGC ON),
B/W: 0.0005 Lux @ (F1.5, AGC ON), 0 Lux with illuminator on

Day & Night

Auto (ICR)

S/N Ratio

55 dB

Lens

Focal Length

6.8 to 251 mm

Max. Aperture

F1.5 to F4.8

Field of View (FOV)

H: 60.4° to 2.5°, V: 36.5° to 1.5°

Optical Zoom

37x

Digital Zoom

16x

Iris

Auto/Manual

Focus Control

Auto/Manual/Semi-automatic

Illuminator

Type

IR + Laser

IR wavelength

850 nm

Distance

Up to 600 m (1,968.5 ft)

Control

Auto / Manual

Intelligent Analytics

Multi-Object Detection

- Supports face, human, and vehicle detection & capture;
- Supports human and vehicle attribute detection;
- Supports multiple frame modes: Full Frame, Four-Corner Frame, Mosaic.

Attribute Extraction

Human Attributes: Gender, age, glasses, hat, bag, upper clothing color & style, lower clothing color & style, reflective vest.
Vehicle Attributes: Type, color, brand, orientation

Intelligent Analysis

Intrusion detection, smart motion detection, single line crossing, double line crossing, loitering, wrong-way detection, area people limit, perimeter detection, illegal parking, running detection, fall detection, fight detection.
- Supports accurate target classification (human/vehicle)

Smoke and Flame Detection

Supported

People Counting

Supported

Video & Audio

Number of Streams

3 Streams

Resolution

Stream1: 2592×1520, 2304×1296, 1920×1080, 1280×720
Stream2: D1, VGA, CIF
Stream3: VGA, CIF, QVGA

Frame Rate

Up to 25/30fps

Bit Rate Control

CBR/VBR

Bit Rate

Stream1: 200 Kbps to 16 Mbps
Stream2: 100 Kbps to 6 Mbps
Stream3: 100 Kbps to 3 Mbps

Smart Encoding

Supported

Region of Interest (ROI)

Supported

Audio Compression

G.711 A-law, G.711 μ-law, RAW_PCM

Audio Bit Rate

64 kbps (G.711), 128 kbps (RAW_PCM)


Image Adjustment

Brightness, Sharpness, Contrast, Saturation adjustable

Scene Mode

Indoor, Outdoor, Mirror

Exposure Mode

Auto, Manual, Shutter priority, Iris priority

White Balance

Auto, Tungsten, Fluorescent, Daylight, Shadow, Manual

Day/Night Setting

Auto, Day, Night, Timer

Noise Reduction

2D/3D DNR

Image Enhancement

HLC, BLC, Defog, WDR, Anti-shake

Wide Dynamic Range

True WDR (120dB)

Privacy Masking

Support 40 zones, mask color configurable

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless, Tilt: -10° to +90° (auto-flip)

Pan Speed

Pan speed: 0.1° to 300°/s, preset speed: 300°/s

Tilt Speed

Tilt speed: 0.1° to 300°/s, preset speed: 300°/s

Preset Accuracy

≤ 0.2°

Preset

400

Track

6 Track

Scan

12 Scan

Tour

12 Tour (up to 32 presets each tour)

Intelligent Tracking

Supported
Object auto tracking (Person/Vehicle)

Power-Off Memory

Supported

3D Positioning

Supported

PTZ Status Display

Supported

Idle Motion

The time can be set (1-240 minutes), and functions such as preset positions, patrols, scans, and tracks can be run.

Event

Alarm Triggers

IVS, Motion detection, Alarm input, Network alarm, Disk alarm, Day/Night switch alarm, Abnormal sound detection

Event Actions

Alarm record, Alarm output, FTP upload, SMTP upload, Snapshot, Audible alarm output

Network

Protocols

IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/ RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, SMTP, 802.1x, SNMP, Multicast

Application Programming Interface

ONVIF (Profile S/T/G/M), SDK, CGI

Max Concurrent Streams

10 channels

User/Host Level

32+ users, 3 levels: Administrator, Operator, Media user

Web Viewer

<IE11, Chrome, Firefox, Microsoft Edge

Security

OS / Firmware Protect

Encrypted firmware, Signed firmware

User Authentication

Digest authentication, Prevent brute-force attack

Network Authentication

IEEE 802.1X(EAP-TLS)

Secure Communication

HTTPS, WSS(WebSocket Secure), SRTP

Access Control

IP-based access control, Auto logout

Data Protect

Encryption credentials

Audit

Access / System / Event Log management

Secure Storage

SDcard partition encrypt(AES-256), Secure element

Supply Chain Security

SBOM

Interface

Network Interface

1 × Ethernet (10/100 Base-T), RJ-45 connector

Audio Interface

1ch input, 1ch output

Alarm Interface

7ch input, 2ch output

RS-485

Supported

CVBS Output

1ch BNC

SD Card Slot

Built-in microSD card slot, up to 1 TB

General

Language

English, Chinese, Traditional Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian, Japanese, Korean. Default: English

Power Supply

24 VAC / 36 VDC / PoE++ (802.3bt), Standard Equipped: 36 VDC

Power Consumption

Max. 45 W

Operating Temperature

-40°C to 60°C (-40°F to 140 °F)

Operating Humidity

Less than 95% RH

Ingress Protection

IP66, IK10, NEMA 4X (optional)

Certifications

CE-EMC
- EN 55032, EN IEC 61000-6-3, EN IEC 61000-3-2, EN 61000-3-3, EN 55035, EN 50130-4
CE-LVD
- EN IEC 62368-1
FCC 47 CFR Part 15 Subpart B

Material

Metal

Dimensions

φ226.1 × 362.8 mm (φ8.9 × 14.28 inch)

Net Weight

5.5 kg (12.13 lb)

DORI Distance (EN62676-4 standard)

Detect

95 to 3,515 m (311.68 to 11,532.15 ft)

Observe

38 to 1,406 m (124.67 to 4,612.86 ft)

Recognize

19 to 703 m (62.34 to 2,306.43 ft)

Identify

9.5 to 351.5 m (31.17 to 1,153.22 ft)
