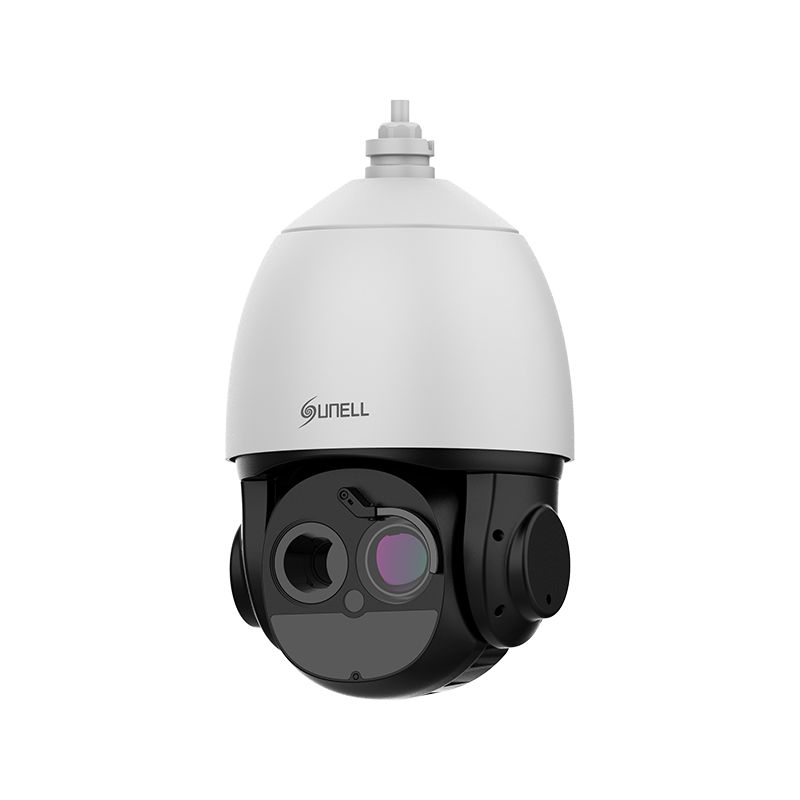

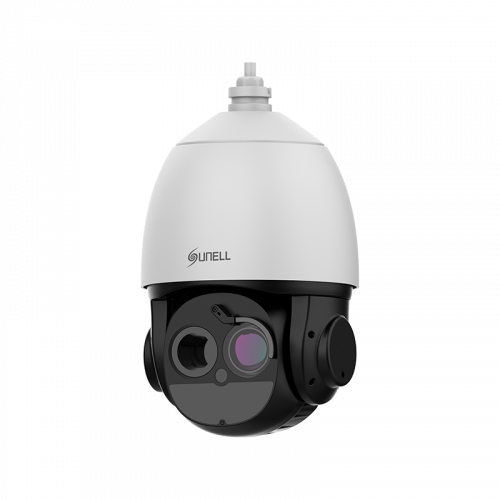

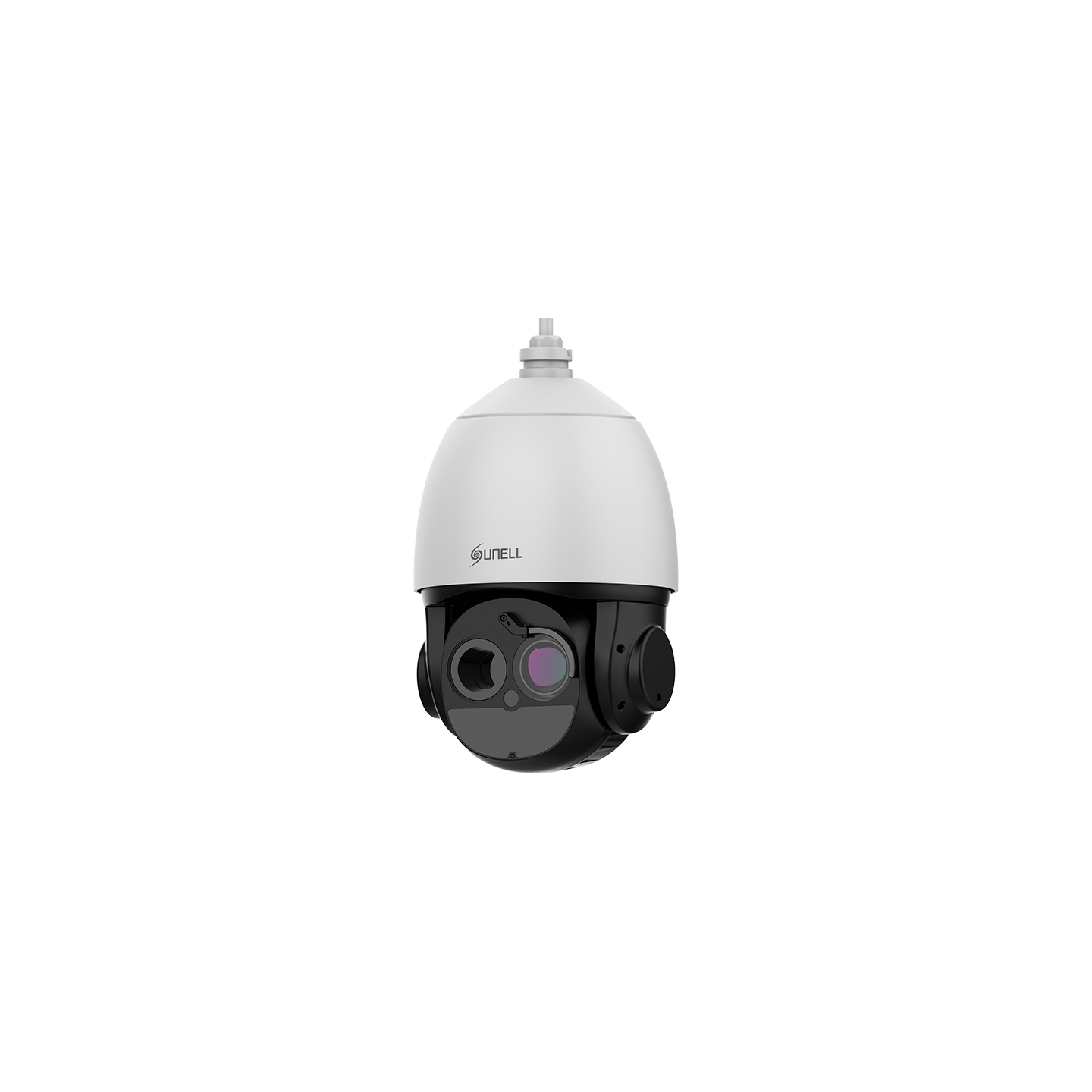

SUNELL SN-TPS4157EV-F

Camera

Thermal

Visible

Image Sensor

Vanadium Oxide Uncooled Focal Plane Arrays

1/1.8" STARVIS™ CMOS

Resolution

Sensor is 384×288. Image can be scaled up to 1280×720

2688 (H)×1520 (V), 4MP

Pixel Pitch

12μm

Spectral Range

8 to 14μm

NETD

≤ 40mK

Min. Illumination

Color: 0.001 Lux @(F1.5, AGC ON),

B/W: 0.0001 Lux (F1.5, AGC ON), 0 Lux with light

Shutter Speed

1/5 to 1/20,000s

Lens Type

Fixed lens

40x optical zoom

Focal Length

5 mm, 7 mm, 15 mm

6.27 to 251 mm

Max. Aperture

F1.0

F1.5

Focus Control

Fixed focal

Auto/Manual/Semi-automatic

Field of View (FOV)

5 mm,

- H: 56°, V: 40°

7 mm,

- H: 44°, V: 33°

15 mm,

- H: 21°, V: 16°

H: 60.7° to 2.33°, V: 36.8° to 1.38°

IVS

AI Multi-Target

Human and vehicle detection

Human and vehicle detection

Intelligent Analysis

Intrusion, Single Line Crossing, Double Line Crossing, Loitering, Wrong-Way Detection, Enter Area, Leave Area, Smart Motion Detection

Support alarm triggering by specified target types (human and vehicle)

Intrusion, Single Line Crossing, Double Line Crossing, Loitering, Wrong-Way Detection, Enter Area, Leave Area, Smart Motion Detection

Support alarm triggering by specified target types (human and vehicle)

Smoke and Flame Detection

Support

Smoking Detection

Support

Fire Spot Detection

Support

People Counting

Support

Support

Smart Tracking

Cold/hot spot tracking, human/vehicle tracking

Video and Audio

Main Stream

1280×720, 704×576, 384×288 @ 25fps

2688×1520, 2560×1440, 2304×1296, 1920×1080, 1280×720 @25/30fps

Sub Stream

704×576, 384×288, 352×240 @ 25fps

D1, VGA @25/30fps

Bit Rate Control

CBR/VBR

CBR/VBR

Bit Rate

Main Stream: 100Kbps to 8Mbps,

Sub Stream: 100Kbps to 6Mbps

Main Stream: 100Kbps to 16Mbps

Sub Stream: 100Kbps to 6Mbps

Smart Encode

Support

Support

Audio Compression

G.711 A-law, G.711 μ-law, RAM PCM

G.711 A-law, G.711 μ-law, RAM PCM


Image Setting

Brightness, Contrast, Sharpness

Brightness, Saturation, Contrast, Sharpness

Mirror

Horizontal / Vertical / Horizontal+Vertical

Horizontal / Vertical / Horizontal+Vertical

Pseudo-color Setting

Up to 17 colors (White-hot / Black-hot / Rainbow / Iron red / HSV /Bone / Cool / Copper / Fire-hot / Pink / Spring / Summer / Autumn / Winter / Jet / Flame / Rose -Bengal)

FFC Control

Auto / Manual

Gain Control

Auto / Manual

White Balance

Auto / Tungsten / Fluorescent / Daylight / Shadow

Day/Night

Day mode / Night mode / Time

Noise Reduction

2D/3D DNR

2D/3D DNR

Image Enhancement

WDR, HLC, BLC

Wide Dynamic Range

True WDR 120dB

OSD

Up to 8 OSD

Up to 8 OSD

Privacy Masking

Up to 4 areas

Up to 4 areas

Illuminator

IR Range:

- Up to 300 m (984.25 ft)

Thermal Function

Temperature Range

-20°C to 150°C (-4°F to 302°F)

Accuracy

±8°C

Temperature Detection

3 temperature measurement rule types, 20 rules in total, 1 full screen, 19 others (spot, areas, line).

Temperature Display

Display in the lower left corner; follow the cursor display of the highest temperature, lowest temperature or average temperature

Image Fusion

Fusion view of thermal view and overlaid details of the optical channel

Event

Alarm Triggers

IVS, Temperature anomaly, Motion detection, Alarm Input, Disk alarm, Network alarm, Abnormal sound detection

Event Actions

Alarm out, Alarm record, SMTP, FTP upload, Audible alarm output

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless, Tilt: -10° to 90° (auto-flip)

Pan Speed

Pan: 0.01° to 300°/s, preset speed: 300°/s

Tilt Speed

Tilt: 0.01° to 240°/s, preset speed: 240°/s

Wiper

Support

Preset Accuracy

≤ 0.2°

Presets

400

Scan

12 scans

Patrol

12 patrols, up to 32 presets per patrol

Track

6 tracks

3D Positioning

Support

Speed Setup

Auto/Manual (0-8)

Power Off Memory

Support

Idle Motion

The time can be set (1-240 minutes), and functions such as preset positions, patrols, scans, and tracks can be run.

Network

Protocols

IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPOE, RTSP/RTP/RTCP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, 802.1x, SNMP, Multicast

Compatible Integration

ONVIF (Profile S/T/G/M), CGI, SDK

Max Concurrent Streams

10 channels

User/Host Level

32+ users, 3 levels: Administrator, Operator, Media user

Security

IP address filter, HTTPS, Illegal login lock, IEEE 802.1x

Web Viewer

<IE11, Chrome, Firefox, Microsoft Edge

Interface

Network Interface

1 Ethernet (10/100 Base-T) RJ-45 Connector

Audio Interface

1ch Audio In, 1ch Audio Out

Alarm Interface

7ch Alarm In, 2ch Alarm Out

RS-485

Support

BNC Interface

1 (CVBS output for visible)

SD Card Slot

Built-in, up to 1 TB

General

Language

English, Chinese, Traditional Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian, Japanese, Korean. Default: English

Power Supply

24VAC/36VDC/PoE++ (802.3bt), Standard Equipped: 36VDC

Power Consumption

Max 45 W

Working Temperature and Humidity

-40°C to 60°C (-40°F to 140°F)

Less than 90% RH

Certifications

CE-EMC

- EN 55032, EN IEC 61000-6-4, EN IEC 61000-3-2, EN 61000-3-3, EN 55035, EN 50130-4

CE-LVD

- EN IEC 62368-1

FCC 47 CFR Part 15 Subpart B

Ingress Protection

IP66

Material

Metal

Dimensions

φ226 × 363 mm (φ8.9 × 14.29 inch)

Net Weight

6 kg (13.2 lb)

Thermal DRI Distance Table

Focal Length

5 mm

7 mm

15 mm

Detection Distance

(Human: 1.8×0.5m)

208 m (682.4 ft)

292 m (958.0 ft)

625 m (2,050.5 ft)

Detection Distance

(Vehicle: 4×1.5m)

639 m (2,096.5 ft)

894 m (2933.1 ft)

1,917 m (6,289.4 ft)

Recognition Distance

(Human: 1.8×0.5m)

52 m (170.6 ft)

73 m (239.5 ft)

156 m (511.8 ft)

Recognition Distance

(Vehicle: 4×1.5m)

160 m (524.9 ft)

224 m (734.9 ft)

479 m (1,571.5 ft)

Identification Distance

(Humans: 1.8×0.5m)

26 m (85.3 ft)

36 m (118.1 ft)

78 m (255.9 ft)

Identification Range

(Vehicles: 4×1.5m)

80 m (262.5 ft)

112 m (367.5 ft)

240 m (787.4 ft)

Thermal Smart Detection Range Table

Focal Length

5 mm

7 mm

15 mm

VCA Detection Distance

(Human: 1.8 × 0.5 m)

45 m (147.6 ft)

65 m (213.3 ft)

110 m (360.9 ft)

VCA Detection Distance

(Front/Rear of Vehicle: 4×1.5 m)

50 m (164 ft)

80 m (262.5 ft)

140 m (459.3 ft)

Temperature Measurement

(Object: 1 × 1m)

83 m (272.3 ft)

117 m (383.9 ft)

250 m (820.2 ft)

Temperature Measurement

(Object: 0.2 × 0.2m)

17 m (55.8 ft)

23 m (75.5 ft)

50 m (164 ft)

Fire Detection

(Object: 1 × 1m)

208 m (682.4 ft)

292 m (958 ft)

625 m (2,050.5 ft)

Fire Detection

(Object: 0.2 × 0.2m)

42 m (137.8 ft)

58 m (190.3 ft)

125 m (410.1 ft)
