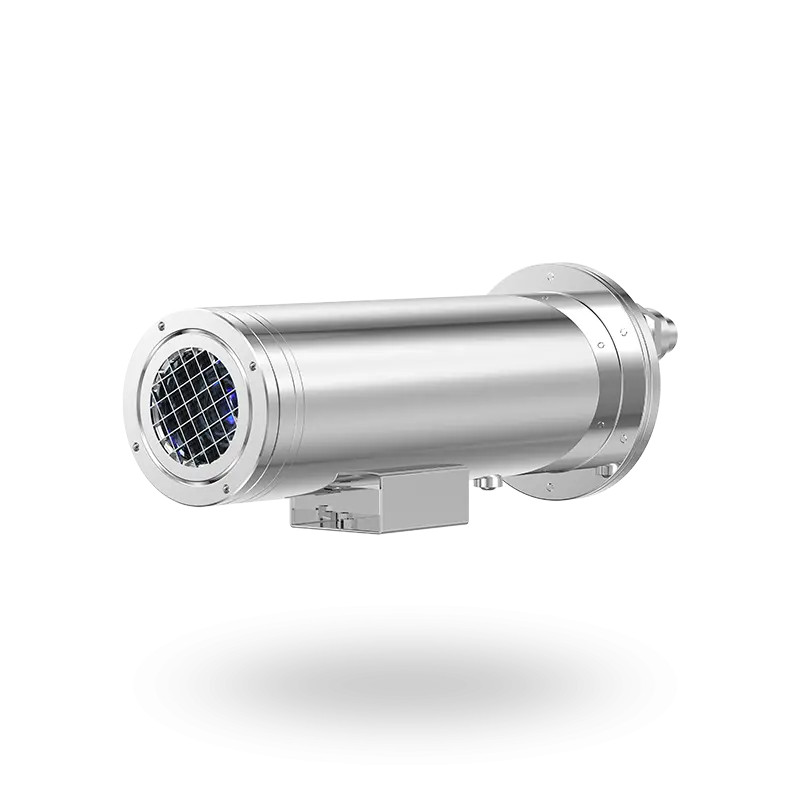

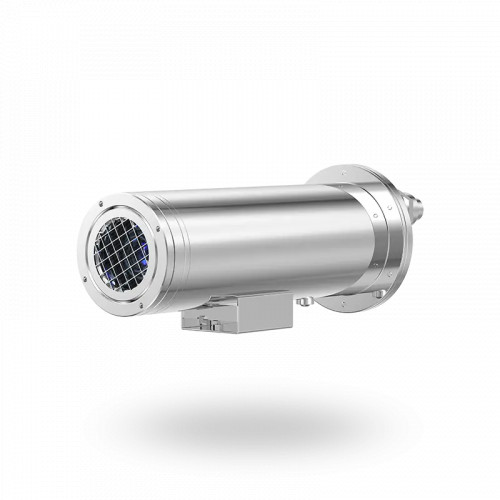

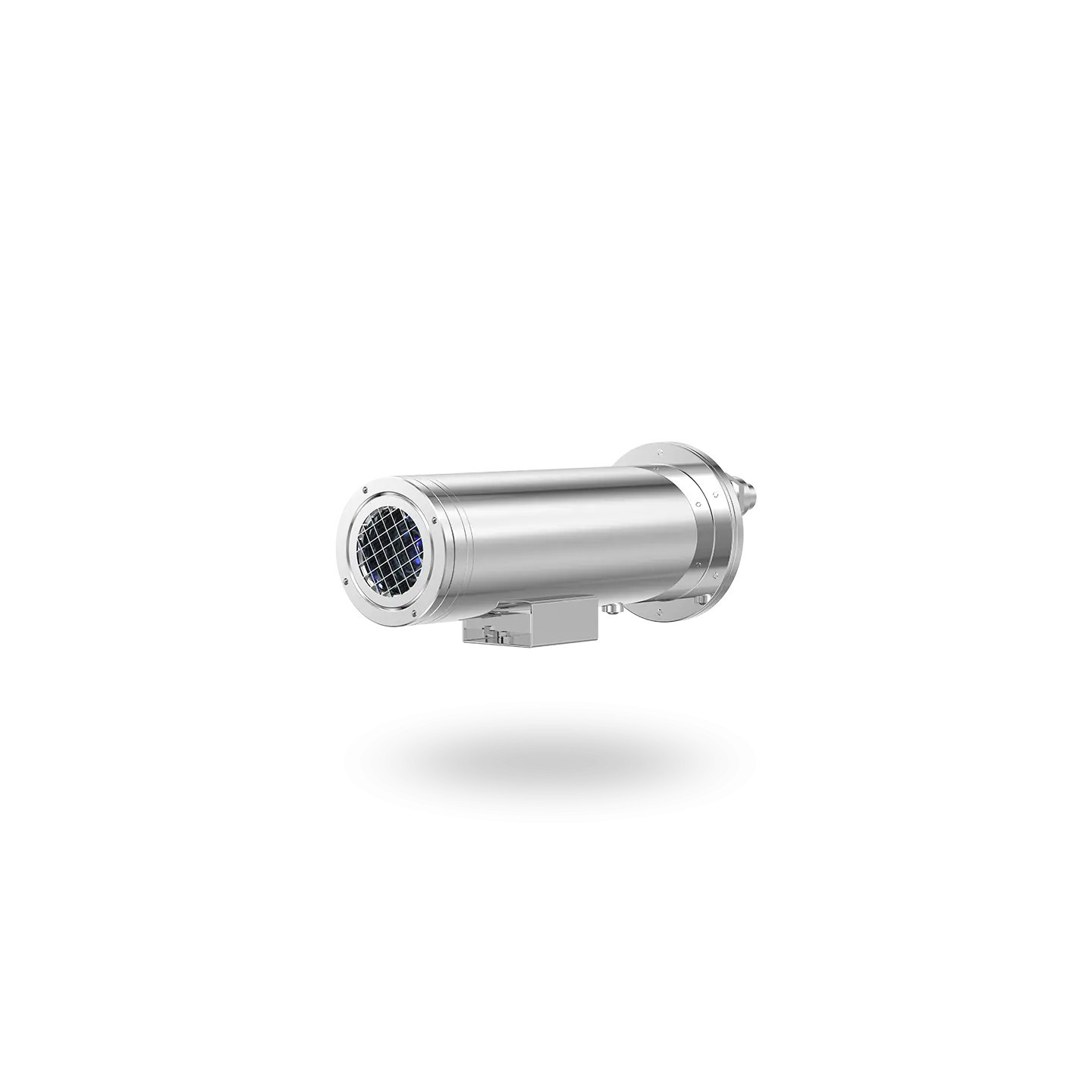

SUNELL SN-TPH6406DA-F

Thermal Module

Image Sensor

Vanadium Oxide Uncooled Focal Plane Arrays

Resolution

Sensor is 640×512. Image can be scaled up to 1280×1024

Pixel Pitch

12 µm

NETD

≤ 40mK

Spectral Range

8 to 14 µm

Focus Control

Fixed lens (Focus-Free)

Focal Length

9 mm, 15 mm, 25 mm, 35 mm, 50 mm

Aperture

F1.0

Field of View (FOV)

9 mm: H: 48°, V: 38°

15 mm: H: 29°, V: 23°

25 mm: H: 17°, V: 14°

35 mm: H: 12°, V: 10°

50 mm: H: 8°, V: 7°

Intelligent Analytics

Smart Detection

Human and Vehicle Detection, Fire Point Detection, and Smoking Detection. (Ship Detection optional)

Intelligent Analysis

Intrusion, Single line crossing, Double line crossing, Loitering, Wrong-way detection, Enter area, and Leave area

(these functions support accurate detection of human / vehicles)

People counting

Support

Thermal Function

Temperature Range

-20°C to 150°C (-4°F to 302°F)

Accuracy

±2°C / ±2%

Temperature Detection

3 temperature measurement rule types, 20 rules in total, 1 full screen, 19 others (spot, areas, line).

Temperature Alarm

Temperature difference  alarm, Threshold alarm, Temperature rise  alarm

Temperature Display

Display in the lower left corner; follow the cursor display of the highest temperature, lowest temperature or average temperature

Response Time

≤ 30ms

Video and Audio

Main Stream

1280×1024, 1280×720, 640×512 @25fps

Sub Stream

D1, CIF @25fps

Bit Rate Control

CBR/VBR

Bit Rate

Main stream: 100 Kbps to 8 Mbps,

Sub stream: 100 Kbps to 6 Mbps

Region of Interest

Off/On (8 Zone, Rectangle)

Audio Compression

G.711 A-law, G.711 μ-law, PCM

Audio Bit Rate

64 Kbps (G.711), 128 Kbps (PCM)


Image Setting

Brightness, Contrast, Sharpness

Mirror

Horizontal / Vertical / Horizontal + Vertical

Pseudo-color Setting

Up to 17 colors (White-hot / Black-hot / Rainbow / Iron red / HSV /Bone / Cool / Copper / Fire-hot / Pink / Spring / Summer / Autumn / Winter / Jet / Flame / Rose -Bengal)

FFC Control

Auto / Manual

Noise Reduction

2D/3D DNR

OSD

Up to 8 OSD

Privacy Masking

Up to 4 areas

Event

Alarm Triggers

IVS, Temperature anomaly, Motion detection, Alarm Input, Disk alarm, Network alarm, Abnormal sound detection

Alarm Events

Alarm record, Alarm output, FTP upload, SMTP upload, Audible alarm output

Network

Protocols

IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/ RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, SMTP, 802.1x, SNMP, Multicast

Interoperability

ONVIF (Profile S/T/G/M), SDK, CGI

User/Host Level

Up to 10 users, 3 levels: Administrator, Operator, Media user

Security

IP address filter, encrypted HTTPS, Illegal login lock, IEEE 802.1x

Web Viewer

Interface

Network Interface

1 Ethernet (10/100 Base-T) RJ-45 Connector

Audio Interface

1ch Audio In, 1ch Audio Out

Alarm Interface

1ch Alarm In, 1ch Alarm Out

RS-485

1ch

SD Card Slot

Built-in, up to 512GB

Reset Button

Support

General

Language

English, Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian. Default: English

Power Supply

100 to 240 VAC

Power Consumption

Max 25 W

Working Temperature/Humidity

-40°C to 60°C (-40°F to 140°F),

Humidity: ≤90% RH (non-condensing)

Certifications

CE-EMC (EN 55032:2015+A1:2020, EN 55035:2017+A11:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-6-3:2007+A1:2011+AC:2012, EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A2:2019)

FCC (FCC 47 CFR 15, Subpart B, ANSI C63.4-2014)

Ingress Protection

IP68

Material

SUS316L

Dimensions

464 × 166 × 171mm (18.27 × 6.54 × 6.73 inch)

Net Weight

10 kg

DRI Distance Table

Focal Length

9 mm

15 mm

25 mm

35 mm

50 mm

Detection Distance

(Humans: 1.8×0.5m)

375 m (1230.3 ft)

625 m (2,050.5 ft)

1,042 m (3,418.6 ft)

1,458 m (4,783.5 ft)

2,083 m (9,196.2 ft)

Detection Distance

(Vehicles: 4×1.5m)

1,150 m (3,773 ft)

1,917 m (6,289.3 ft)

3,194 m (10,479 ft)

4,472 m (14,672 ft)

6,389 m (20,961 ft)

Recognition Distance

(Humans: 1.8×0.5m)

94 m (308.4 ft)

156 m (511.8 ft)

260 m (853 ft)

365 m (1,197.5 ft)

521 m (1,709.3 ft)

Recognition Distance

(Vehicles: 4×1.5m)

288 m (944.9 ft)

479 m (1,571.5 ft)

799 m (2,621.4 ft)

1,118 m (3,668 ft)

1,597 m (5,239.5 ft)

Identification Distance

(Humans: 1.8×0.5m)

47 m (154.2 ft)

78 m (255.9 ft)

130 m (426.5 ft)

182 m (597.1 ft)

260 m (853 ft)

Identification Range

(Vehicles: 4×1.5m)

144 m (472.4 ft)

240 m (787.4 ft)

399 m (1,309 ft)

559 m (1,834 ft)

799 m (2,621.4 ft)

Smart Detection Range Table

Focal Length

9 mm

15 mm

25 mm

35 mm

50 mm

VCA Detection Distance

(Human: 1.8 × 0.5 m)

40 m (131.2 ft)

65 m (213.3 ft)

101 m (331.4 ft)

160 m (524.9 ft)

235 m (771 ft)

VCA Detection Distance

(Front/Rear of Vehicle:   4×1.5 m)

75 m (246.1 ft)

130 m (426.5 ft)

230 m (754.6 ft)

320 m (1,049.9 ft)

400 m (1,312.3 ft)

Temperature Measurement

(Object: 0.2 × 0.2m)

30 m (94.4 ft)

50 m (164 ft)

83 m (272.3 ft)

117 m   (383.9 ft)

167 m (547.9 ft)

Fire Detection

(Object: 0.2 × 0.2m)

75 m (246.1 ft)

125 m (410.1 ft)

208 m (682.4 ft)

292 m   (958 ft)

417 m (1,368.1 ft)
