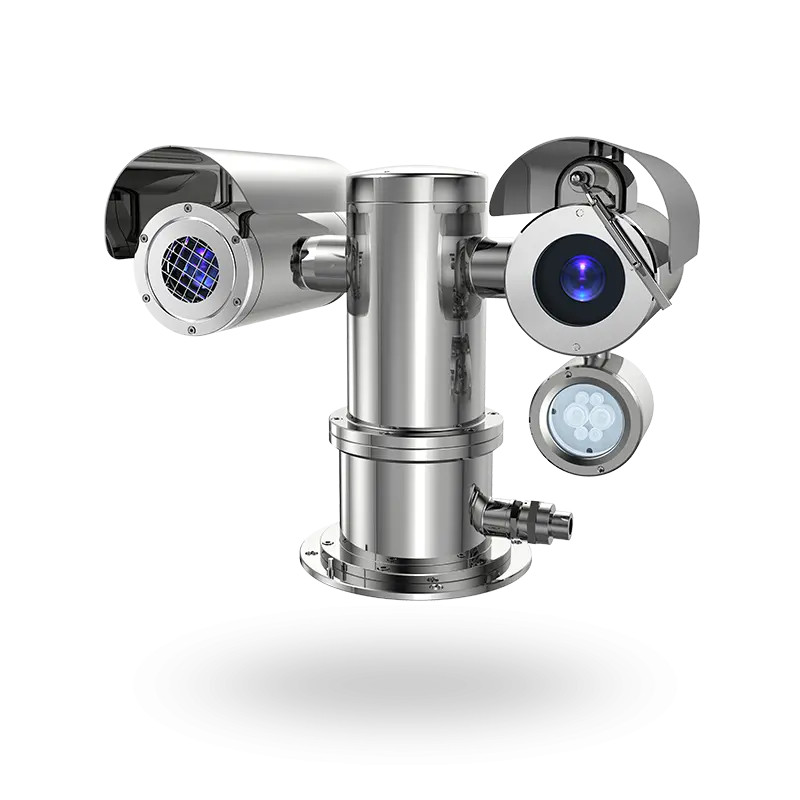

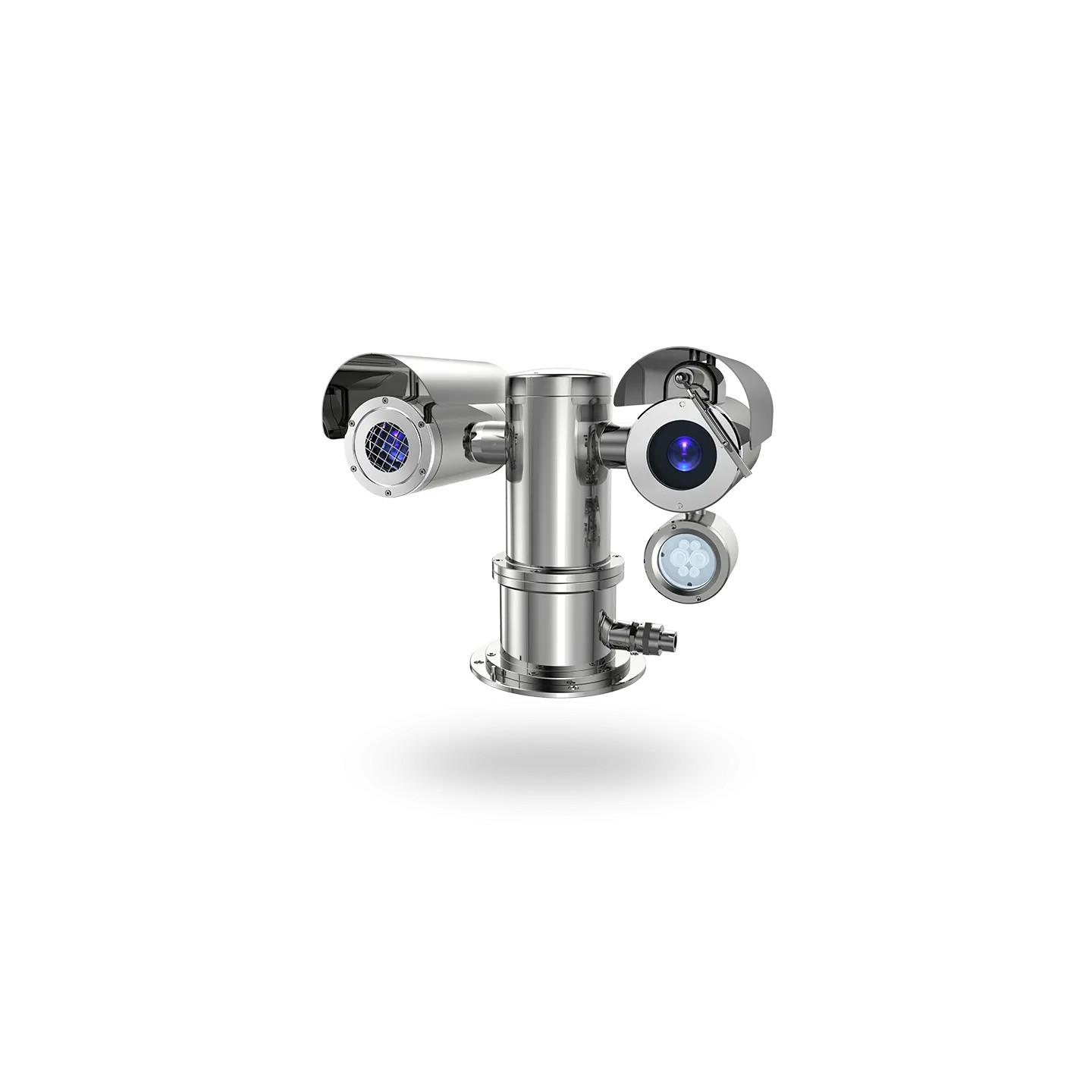

SUNELL SN-TPT4233PA-M

Camera

Thermal

Visible

Image Sensor

Vanadium Oxide Uncooled Focal Plane Arrays

1/2.8" STARVIS CMOS

Resolution

Sensor is 400×300.

Image can be scaled up to 704×576

2592 (H)×1944 (V), 5MP

Pixel Pitch

17 µm

Spectral Range

8 to 14 µm

NETD

≤ 40mK

Min. Illumination

Color: 0.07 Lux @(F1.6, AGC ON),

B/W: 0.007 Lux (F1.6, AGC ON)

Shutter Speed

1/5 to 1/100,000s

Lens Type

Fixed lens

30x optical zoom

Focal Length

25 mm, 50 mm

5.3 to 159 mm

Max. Aperture

F1.0

F1.6

Focus Control

Motorized focus

Auto/Manual/Semi-automatic

Field of View (FOV)

25 mm: H: 15.4°, V: 11.6°

50 mm: H: 7.7°, V: 5.8°

H: 56.3° to 2.7°, V: 42.4° to 2.0°

Intelligent Analytics

AI Multi-Target

Human and Vehicle detection

Face / Human / Vehicle detection and capture

Intelligent Analysis

Intrusion, Single Line Crossing, Double Line Crossing, Loitering, Wrong-Way Detection, Enter Area, Leave Area, Smart Motion Detection

Support alarm triggering by specified target types (human and vehicle)

Intrusion, Single Line Crossing, Double Line Crossing, Loitering, Wrong-Way Detection, Smart Motion Detection

Support alarm triggering by specified target types (human and vehicle)

Smoke and Flame Detection

Support

Fire Spot   Detection

Intrusion, Single line crossing, Double line crossing, Loitering,   Wrong-way detection, Enter area, Leave area

People Counting

Support

Support

Video and Audio

Stream/Frame Rate

Stream1: 704×576 @25/30fps

Stream2: CIF @25/30fps

Stream1: 2592×1944, 2592×1520,

1920×1080, 1280×720 @25/30fps

Stream2: D1, VGA, CIF @25/30fps

Stream3: VGA, CIF, QVGA @25/30fps

Bit Rate Control

CBR/VBR

CBR/VBR

Bit Rate

Stream1: 100 Kbps to 6 Mbps,

Stream2: 10 Kbps to 1.5 Mbps

Stream1: 200 kbps to 12 Mbps

Stream2: 100 kbps to 6 Mbps

Stream3: 100 kbps to 3 Mbps

Region of Interest

Off/On (8 Zone, Rectangle)

Support

Audio Compression

G.711 A-law, G.711 μ-law, PCM

G.711 A-law, G.711 μ-law, PCM

Audio Bit Rate

64 Kbps (G.711), 128 Kbps (PCM)

64 Kbps (G.711), 128 Kbps (PCM)


Image Setting

Brightness, Contrast, Sharpness

Brightness, Saturation, Contrast, Sharpness

Mirror

Horizontal / Vertical / Horizontal+Vertical

Horizontal / Vertical / Horizontal+Vertical

Pseudo-color Setting

Up to 17 colors (White-hot / Black-hot / Rainbow / Iron red / HSV /Bone / Cool / Copper / Fire-hot / Pink / Spring / Summer / Autumn / Winter / Jet / Flame / Rose -Bengal)

FFC Control

Auto / Manual

White Balance

Auto / Tungsten / Fluorescent / Daylight / Shadow / Manual

Day/Night

Auto / Day mode / Night mode / Timer

Noise Reduction

2D/3D DNR

2D/3D DNR

Image Enhancement

WDR, HLC, BLC, Defog

Wide Dynamic Range

True WDR

OSD

Up to 8 OSD

Up to 8 OSD

Privacy Masking

Support

Support

Illuminator

IR Range: Up to 100 m (328.08 ft.)

Thermal Function

Temperature Range

-20°C to 150°C (-4°F to 302°F)

Accuracy

±2°C / ±2%

Temperature Detection

3 temperature measurement rule types, 20 rules in total, 1 full screen, 19 others (spot, areas, line).

Temperature Alarm

Temperature difference  alarm, Threshold alarm, Temperature rise  alarm

Temperature Display

Display in the lower left corner; follow the cursor display of the highest temperature, lowest temperature or average temperature

Response Time

≤ 30ms

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless, Tilt: +90° to -90°

Pan/Tilt Speed

Pan: 0.1° to 30°/s, Tilt: 0.1° to 20°/s

Wiper

Support

Preset Accuracy

≤ 0.2°

Presets

400

Scan

8 scans

Patrol

12 patrols, up to 32 presets per patrol

Track

6 tracks

3D Positioning

Support

Speed Setup

Auto/Manual (0-8)

Power Off Memory

Support

Idle Motion

The time can be set (1-240 minutes), and functions such as preset positions, patrols, scans, and tracks can be run.

Event

Alarm Triggers

IVS, Temperature anomaly, Motion detection, Alarm Input, Disk alarm, Network alarm, Abnormal sound detection

Event Actions

Alarm record, Alarm output, FTP upload, SMTP upload, Audible alarm output

Network

Protocols

IPv4/IPv6, HTTP/HTTPS, DNS, DDNS, DHCP, PPPoE, RTSP/ RTCP/RTP, TCP/UDP, NTP, ARP, UPnP, FTP, SMTP, QoS, ICMP, IGMP, SMTP, 802.1x, SNMP, Multicast

Interoperability

ONVIF (Profile S/T/G/M), SDK, CGI

User/Host Level

Up to 10 users, 3 levels: Administrator, Operator, Media user

Security

IP address filter, encrypted HTTPS, Illegal login lock, IEEE 802.1x

Web Viewer

<IE11, Chrome, Firefox, Microsoft Edge

Interface

Network Interface

1 Ethernet (10/100 Base-T) RJ-45 Connector

Audio Interface

1ch input, 1ch output

Alarm Interface

5ch input, 1ch output

RS-485

Support

BNC Interface

1 BNC (CVBS output of Visible)

Reset Button

Built-in

SD Card Slot

Built-in Micro SD card slot, up to 256GB

General

Language

English, Chinese, Polish, Italian, Portuguese, Spanish, Russian, French, Czech, Hungarian. Default: English

Power Supply

100 to 240 VAC

Power Consumption

Max 75 W

Working Temperature/Humidity

-40°C to 60°C (-40°F to 140°F),

Humidity: ≤90% RH (non-condensing)

Certifications

CE-EMC (EN 55032:2015+A1:2020, EN 55035:2017+A11:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-6-3:2021, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A2:2021)

FCC (FCC 47 CFR 15, Subpart B, ANSI C63.4-2014)

Ingress Protection

IP68

Material

SUS316L

Dimensions

567 × 360 × 494mm (22.66 × 14.17 × 19.45 inch)

Net Weight

52 kg (114.64 lb)

DRI Distance Table

Focal Length

25 mm

50 mm

Detection Distance

(Humans: 1.8×0.5m)

735 m (2,411.4 ft)

1,471 m (4,826.1 ft)

Detection Distance

(Vehicles: 4×1.5m)

2,255 m (7,398.3 ft)

4,510 m (14,796.6 ft)

Recognition Distance

(Humans: 1.8×0.5m)

184 m (603.7 ft)

368 m (1,207.4 ft)

Recognition Distance

(Vehicles: 4×1.5m)

564 m (1,850.4 ft)

1,127 m (3,697.5 ft)

Identification Distance

(Humans: 1.8×0.5m)

92 m (301.8 ft)

184 m (603.7 ft)

Identification Range

(Vehicles: 4×1.5m)

282 m (925.2 ft)

564 m (1,850.4 ft)

Smart Detection Range Table

Focal Length

25 mm

50 mm

VCA Detection Distance

(Human: 1.8 × 0.5 m)

105 m (344.5 ft)

284 m (931.8 ft)

VCA Detection Distance

(Front/Rear of Vehicle:   4×1.5 m)

200 m (656.2 ft)

450 m (1,476.4 ft)

Temperature Measurement

(Object: 0.2 × 0.2m)

59 m (193.6 ft)

118 m (616.8 ft)

Fire Detection

(Object: 0.2 × 0.2m)

147 m (482.3 ft)

294 m (964.6 ft)
